PLASTIC FILM CI FLEXO PRINTNG MACHINE

PLASTIC FILM CI FLEXO PRINTNG MACHINE

CHCI-J Series

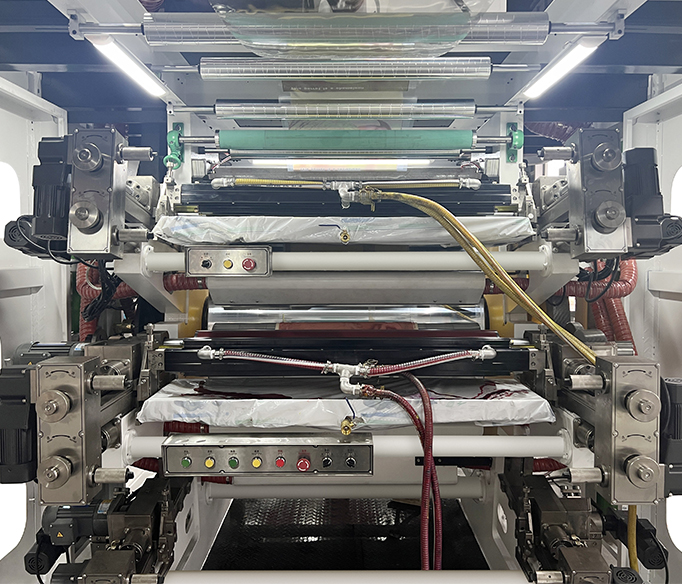

All printing units of Ci flexo printing machine share one impression cylinder. Each plate cylinder rotates around a large diameter impression cylinder. The substrate enters between the plate cylinder and impression cylinder. It rotates against the surface of the impression cylinder to complete multi-color printing.



TECHNICAL SPECIFICATIONS

Model CHCI-600J CHCI-800J CHCI-1000J CHCI-1200J
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Machine Speed 250m/min
Printing Speed 200m/min
Max. Unwind/Rewind Dia. Φ800mm/Φ1200MM/Φ1500MM(Special size can be customized)
Drive Type Gear drive
Plate thickness Photopolymer plate 1.7mm or 1.14mm (or to be specified)
Ink water based / slovent based / UV/LED
Printing length (repeat) 350mm-900mm (Special size can be customized)
Range Of Substrates Films; Paper; Non-Woven; Aluminium foil; Laminates
Electrical supply Voltage 380V. 50 HZ.3PH or to be specified
  • Machine Features

    1.The ink level is clear and the printed product color is brighter.
    2.Ci flexo printing machine dries almost as soon as the paper is loaded due to the water-based ink printing.
    3.CI Flexo Printing Press is easier to operate than offset printing.
    4.The overprinting precision of the printed matter is high, and the multi-color printing can be completed by one pass of the printed matter on the impression cylinder
    5.Short printing adjustment distance, less loss of printing material.

  • High efficiencyHigh efficiency
  • Fully automaticFully automatic
  • Eco-friendlyEco-friendly
  • Wide range of materialsWide range of materials
  • 1
    2
    3
    4
    5
    6

    Sample display

    Film flexo printing machine has a wide range of printing fields. In addition to printing various plastic films such as /PE/Bopp/Shrink film/PET/NY/, it can also print non-woven fabrics, paper and other materials.
