China wholesale Industrial Vinyl Printer Factory – Bopp/PE/Shrink film/PET/NY/film flexo printing machine – Changhong Printing Detail:

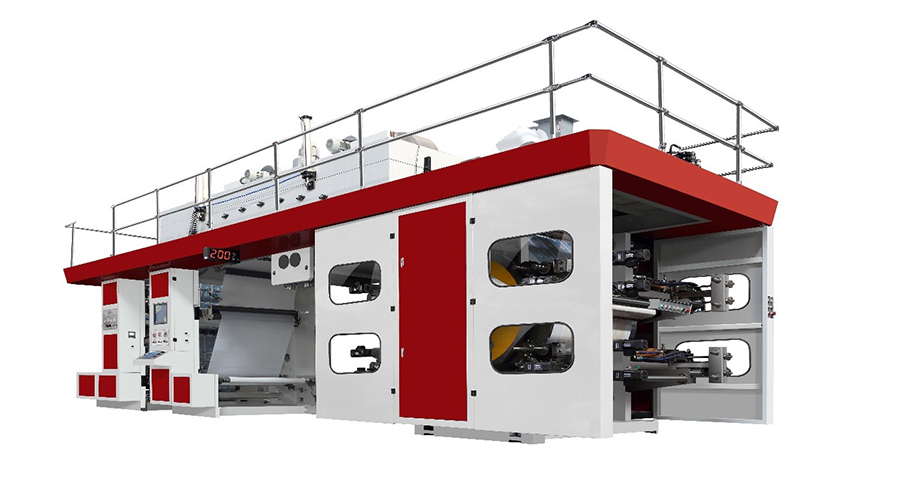

All printing units of Ci flexo printing machine share one impression cylinder. Each plate cylinder rotates around a large diameter impression cylinder. The substrate enters between the plate cylinder and impression cylinder. It rotates against the surface of the impression cylinder to complete multi-color printing.

Ci flexo printing machine4

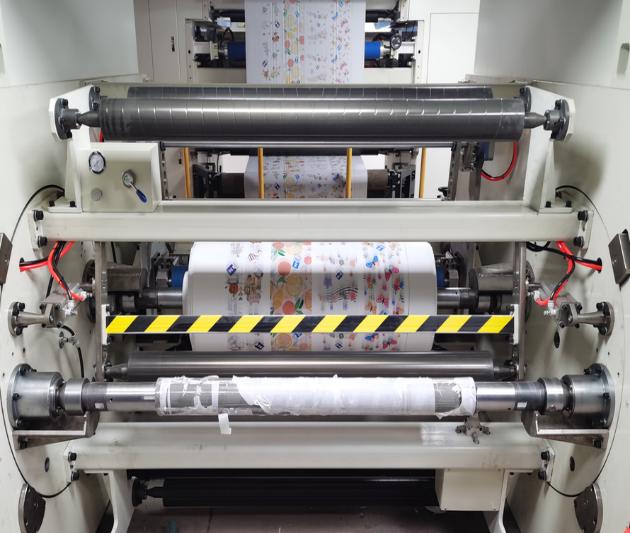

The following is an introduction to the workflow of unwinding and rewinding of the Plastic film flexo printing machine.

TECHNICAL SPECIFICATIONS
Model	CHCI4-600E	CHCI4-800E	CHCI4-1000E	CHCI4-1200E
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	550mm	750mm	950mm	1150mm
Max. Machine Speed	300m/min
Printing Speed	250m/min
Max. Unwind/Rewind Dia.	φ800mm
Drive Type	Gear drive
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified)
Ink	Water base ink or solvent ink
Printing length (repeat)	400mm-900mm
Range Of Substrates	LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN
Electrical supply	Voltage 380V. 50 HZ.3PH or to be specified

1.The ink level is clear and the printed product color is brighter.

2. Ci flexo printing machine dries almost as soon as the paper is loaded due to the water-based ink printing.

3.CI Flexo Printing Press is easier to operate than offset printing.

4.The overprinting precision of the printed matter is high, and the multi-color printing can be completed by one pass of the printed matter on the impression cylinder

5.Short printing adjustment distance, less loss of printing material.

1659944523211

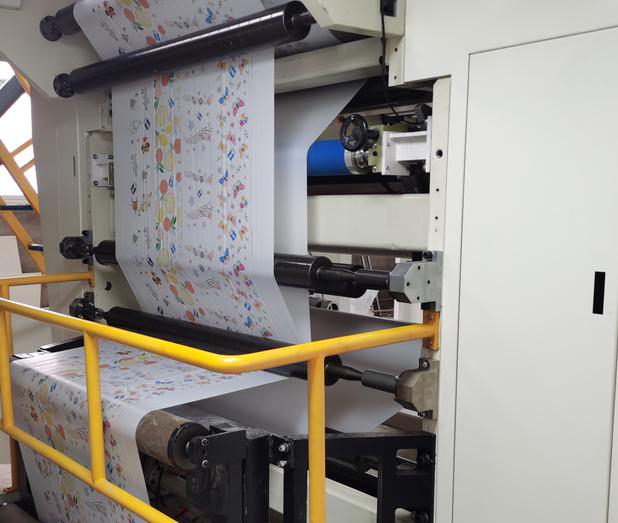

图片2(1)

Film flexo printing machine has a wide range of printing fields. In addition to printing various plastic films such as /PE/Bopp/Shrink film/PET/NY/, it can also print non-woven fabrics, paper and other materials.

4（1）
Plastic bag

ff9b91a8cb3f9752911048ef9fddced

Changhong Flexo printing machines have passed ISO9001 international quality system certification and EU CE safety certification, etc.
