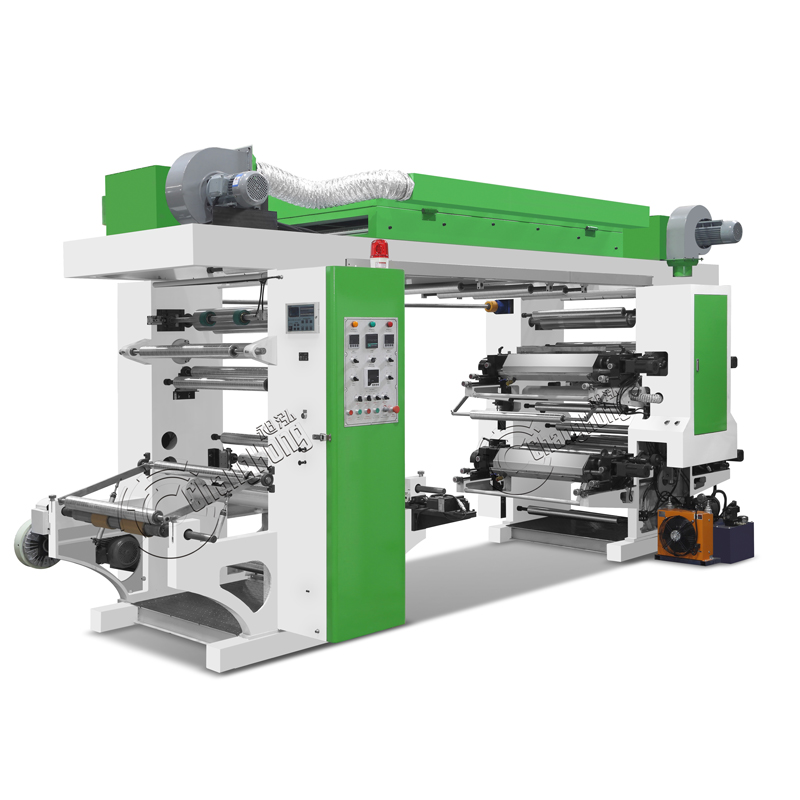

China wholesale Foil Printing Machine Supplier – Stack Type Flexo Printing Machine For Plastic 4 Colors – Changhong Printing

TECHNICAL SPECIFICATIONS

From the past few years, our firm absorbed and digested sophisticated technologies equally at home and abroad. Meanwhile, our organization staffs a group of experts devoted into the growth of Flexo Plate Making Machine, Machine For Logo Printing, Machine To Print On Plastic, President of our company, with whole staff, welcomes all buyers to visit our company and inspect. Let us cooperate hand in hand to make a good future.

China wholesale Foil Printing Machine Supplier – Stack Type Flexo Printing Machine For Plastic 4 Colors – Changhong Printing Detail:

Product Video

Machine Features

Machine form: Use big gear drive and register the color more accurate.
The structure is compact. The parts of the machine can interchange standardization and easy to get. And we chooser low abrasion design.
The plate is really simple. It can save more time and cost less.
The printing pressure is smaller. It can decrease the waste and make the service life longer.
Print many kinds of material include various thin film reels.
Adopt high quality Ceramic Anilox roller to increase the printing effect.
Adopt imported electric appliances to make the electric circuit control stability and safety.
Machine Frame: 75MM thick iron plate. No vibration at high speed and have a long service life.

Technical Specifications

Model	CH4-600H	CH4-800H	CH4-1000H	CH4-1200H
Max. Web Width	600mm	800mm	1000mm	1200mm
Max. Printing Width	550mm	750mm	950mm	1150mm
Max. Machine Speed	120m/min
Printing Speed	100m/min
Max. Unwind/Rewind Dia.	φ800mm
Drive Type	Gear drive/Belt Drive( According to your requirement)
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified）
Ink	Water base ink or solvent ink
Printing length (repeat)	270mm-900mm
Range Of Substrates	LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon
Electrical supply	Voltage 380V. 50 HZ.3PH or as your requirement to make it

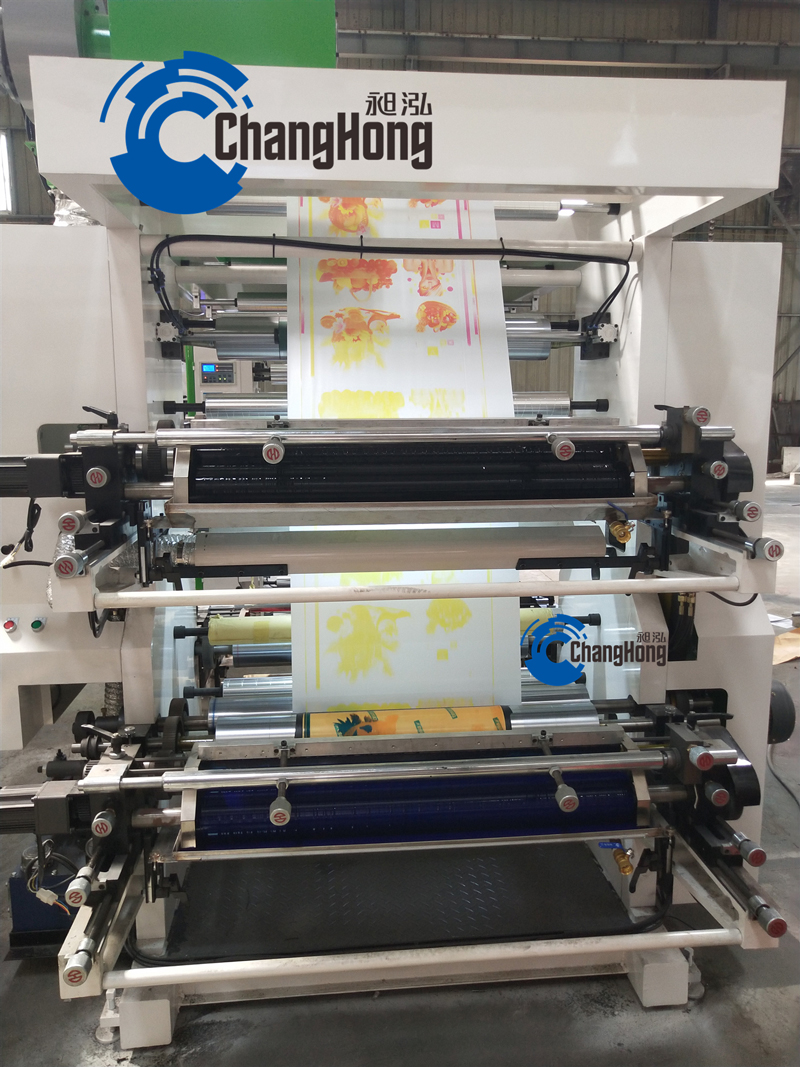

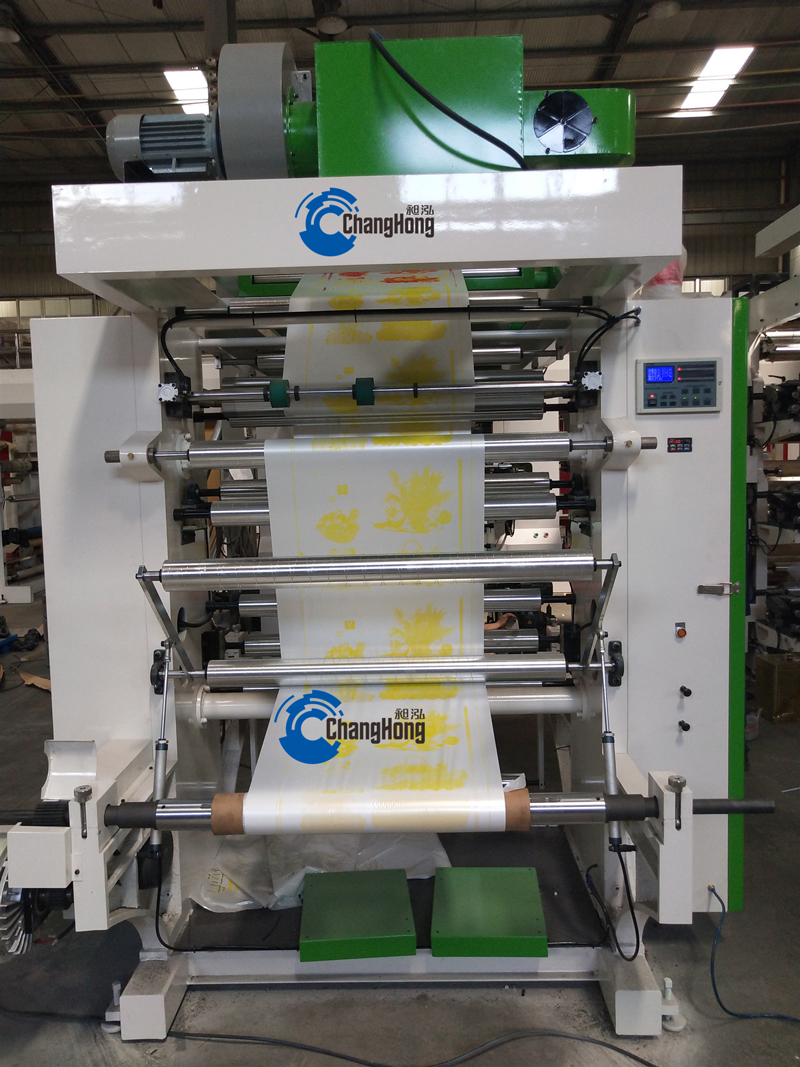

Detailed Machines Pictures

product-description1
product-description2
product-description3

Sample

product-description4
product-description5
product-description6
product-description7

Product detail pictures:
