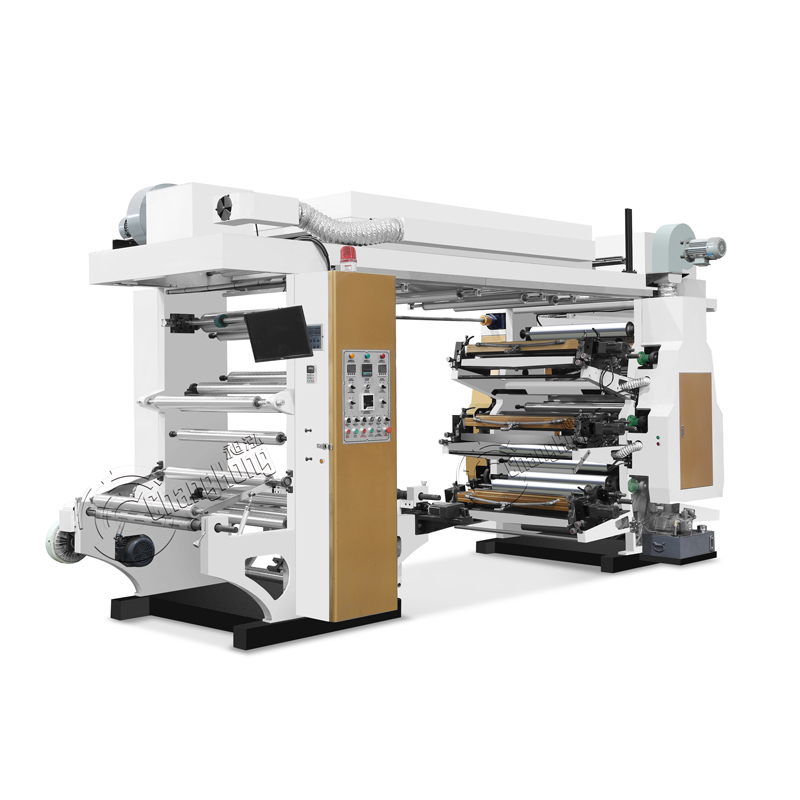

China wholesale Flexo Printing Unit Factories – Plastic Film Stack Type Flexo Printing Machine – Changhong Printing Detail:

MODEL	CH-H Series（Can be customized according to customer production and market requirements）
Number of printing decks	4/6/8
Max Machine Speed	120-150m/min
Printing Speed	30-120m/min
Printing Width	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Roll Diameter	Φ800/Φ1000/Φ1500 （optional）
Ink	water based / slovent based / UV/LED
Repeat Length	300mm-1200mm
Drive Method	Gear drive / Belt drive
Main Processed Materials	Films; Paper; Non-Woven

Name	Model	Brand
Main motor –1pcs	3.7kw	Taibang. Taiwan
Rewind motor -1 pcs	1.5kw	Jiangsu oubang. China
Contactor –6pcs	LC1E32-10LC1E18-10	Schneider. Germany
Circuit-Breaker	NXB-63C20NXB-632C20 NXB-125D100	CHNT. China
Counter	JC72S	CHNT
Rotary Switch	ZB2-BE101C	Schneider. Germany
E-stop Switch	ZB2-BE102C	Schneider. Germany
Mini Relay	JQX -BF(D)PYPE AH 3-2	CHNTCKC
Button Switch	ZB2-BE102C	Schneider Germany
Temperature controller		AISET. CHINA
Indicator Light		Made in China
Inverter		Delta Taiwan
Automatic Tension–2pcs	HAITAI-B600	domestic
EPC—1pcs		Chongqing .dongdeng.China

Machine description：
1. Machine body frame 75mm
2. Each color comes with a ceramic Anilox rollers (Japanese brand for maximum print quality).
3. Match one set of 400mm printing cylinders for free.
4. Unwinder with automatic stress (tension) control. Panasonic, japanese or another brand.
5. Winder with automatic stress (tension) control. Panasonic, japanese or another brand.
6. Stress (tension) Control of the independent machine.
7. Hydraulic lift for operator.
Main Features:
Adopts the synchronouls belt drive instead of Gear drive;
Machine running more quite, higher printing precison, good quality;
Machine more stability;
Single unwind & Single rewind ( also can make double unwinder and double rewinder)

product-description13
product-description22
product-description33
product-description4

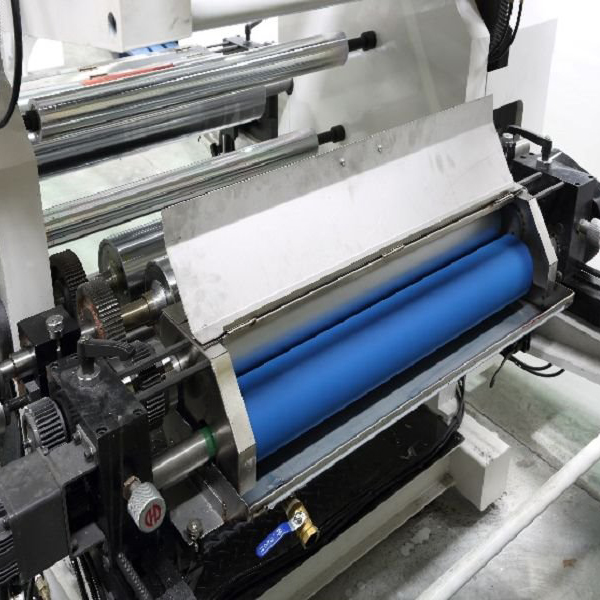

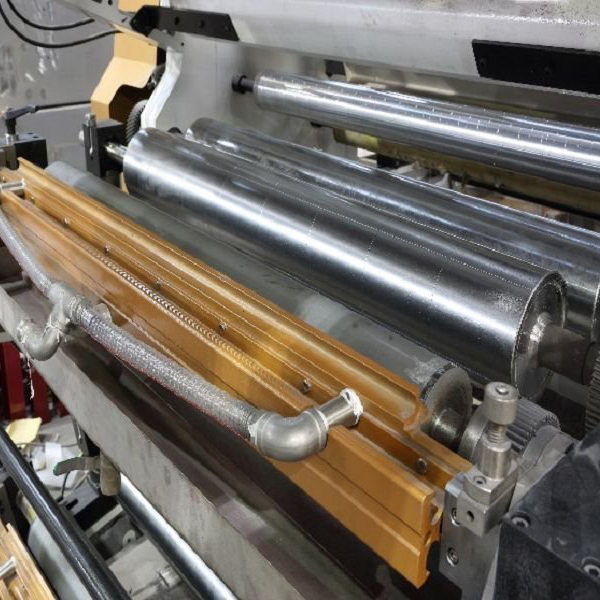

Product detail pictures:
