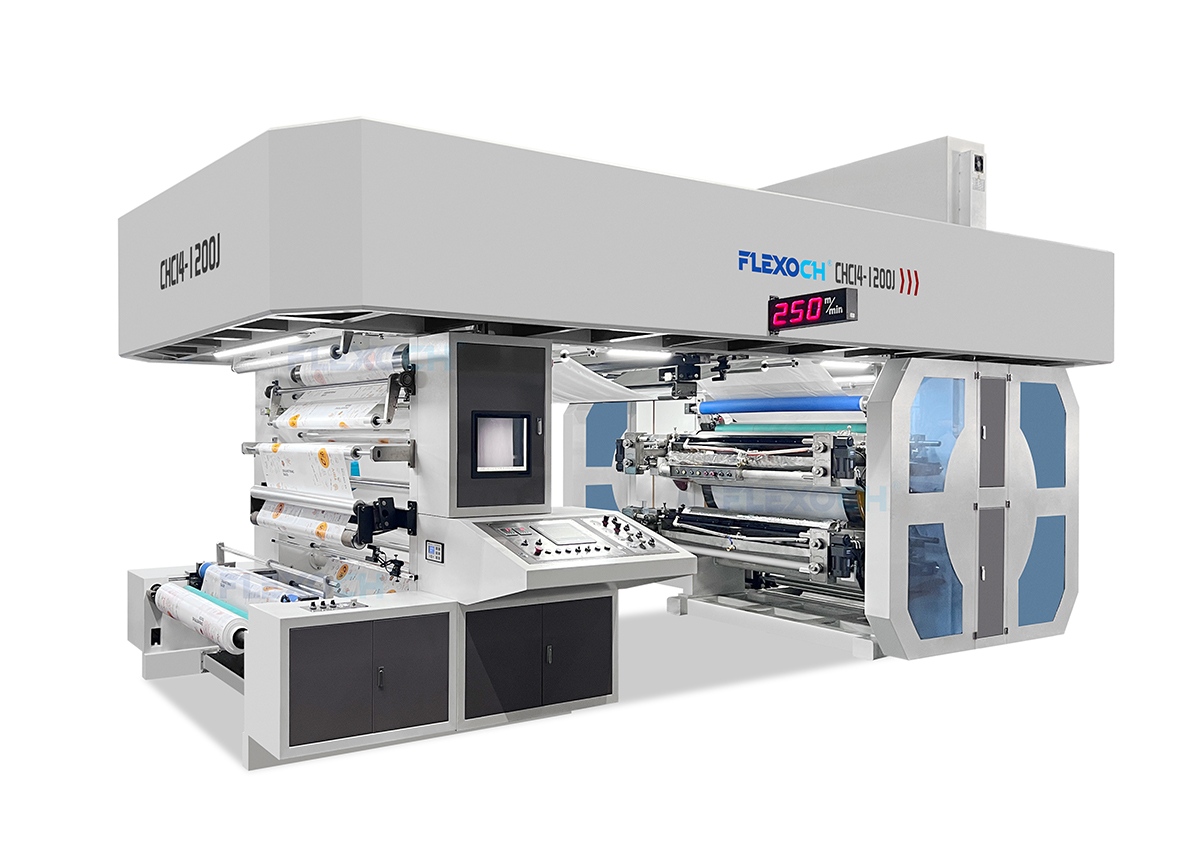

Central Drum 4 Colour CI Flexo Printing Machine with Slitter unit/full turn bar

This Central Drum 4-colour CI flexo printing machine is built for plastic film and aluminum foil printing. Its central impression cylinder structure ensures stable operation and high overprint precision. Equipped with a full-width turning device, it achieves single or double-sided printing in one pass. A slitting unit before the winding section enables simultaneous printing and slitting, streamlining production workflows and boosting overall efficiency.

TECHNICAL SPECIFICATIONS

MODEL:CHCI-J-S Series

Machine speed:250m/min

Number Of Printing Decks:4/6/8

Drive Method:Central drum with Gear drive

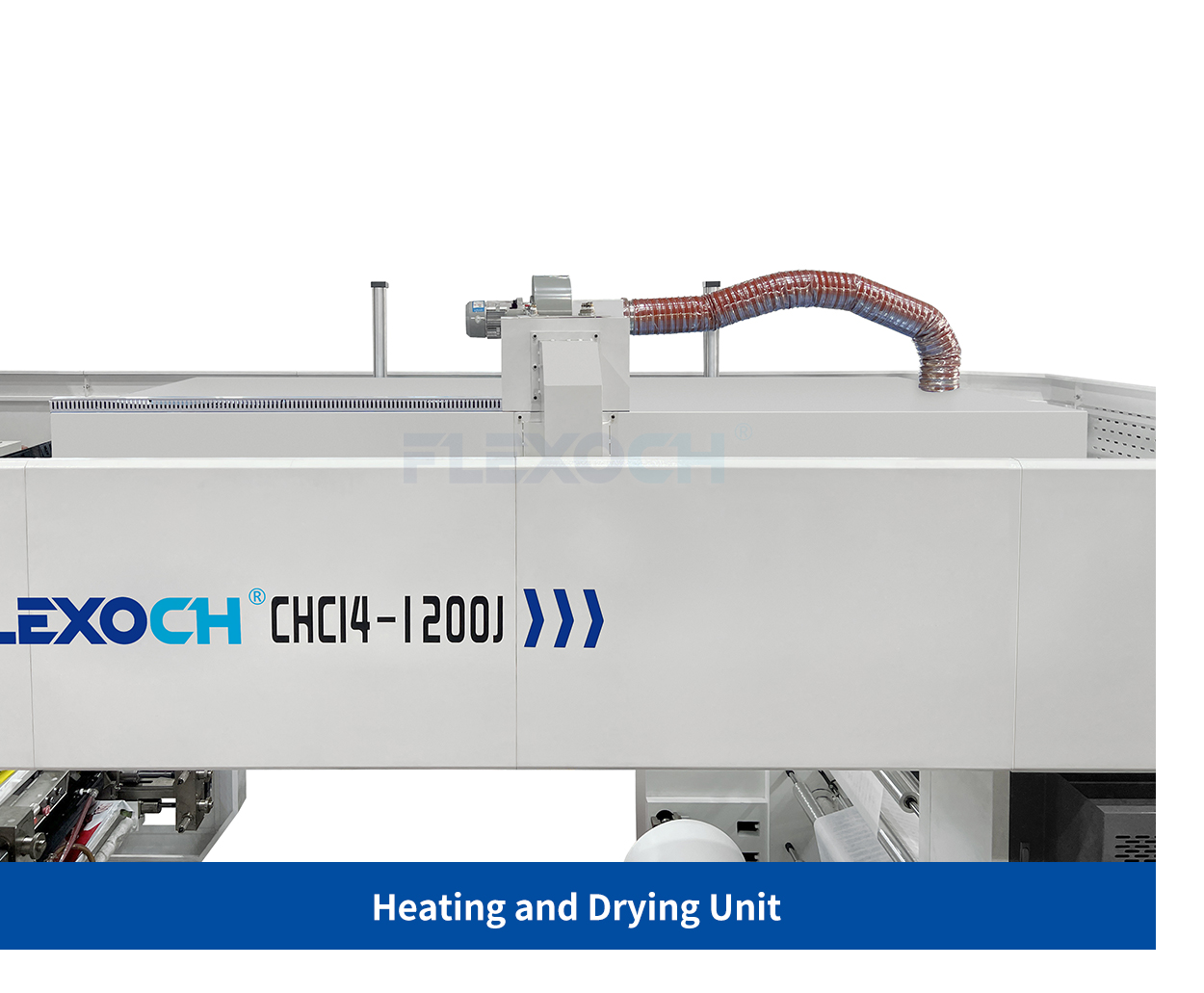

Heat Source:Gas, Steam, Hot oil, Electrical heating

Electrical Supply :Voltage 380V. 50 HZ.3PH or to be specified

Main Processed Materials:Film; Paper; Non-Woven, Aluminium foil

Production Description

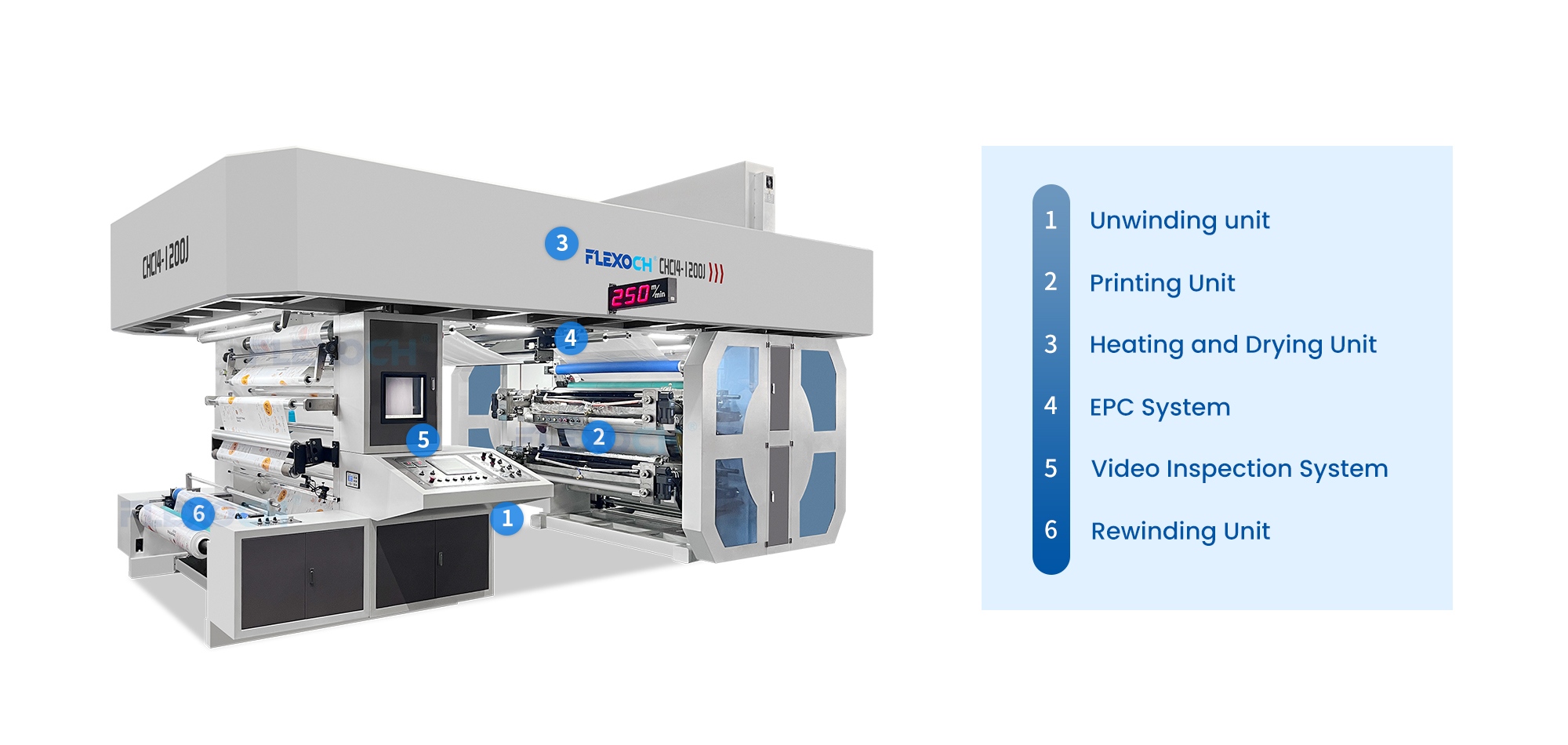

Central Drum Flexo Printing Machine 4 Colour

Parameter

Model	CHCI4-600J-S	CHCI4-800J-S	CHCI4-1000J-S	CHCI4-1200J-S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Machine Speed	250m/min
Max. Printing Speed	200m/min
Max. Unwind/Rewind Dia.	Φ800mm/Φ1000mm/Φ1200mm
Drive Type	Central drum with Gear drive
Photopolymer Plate	To be specified
Ink	Water base ink or solvent ink
Printing Length (repeat)	350mm-900mm
Range Of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, OPP,PET, Nylon,
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified

Video Introduction

Machine Features

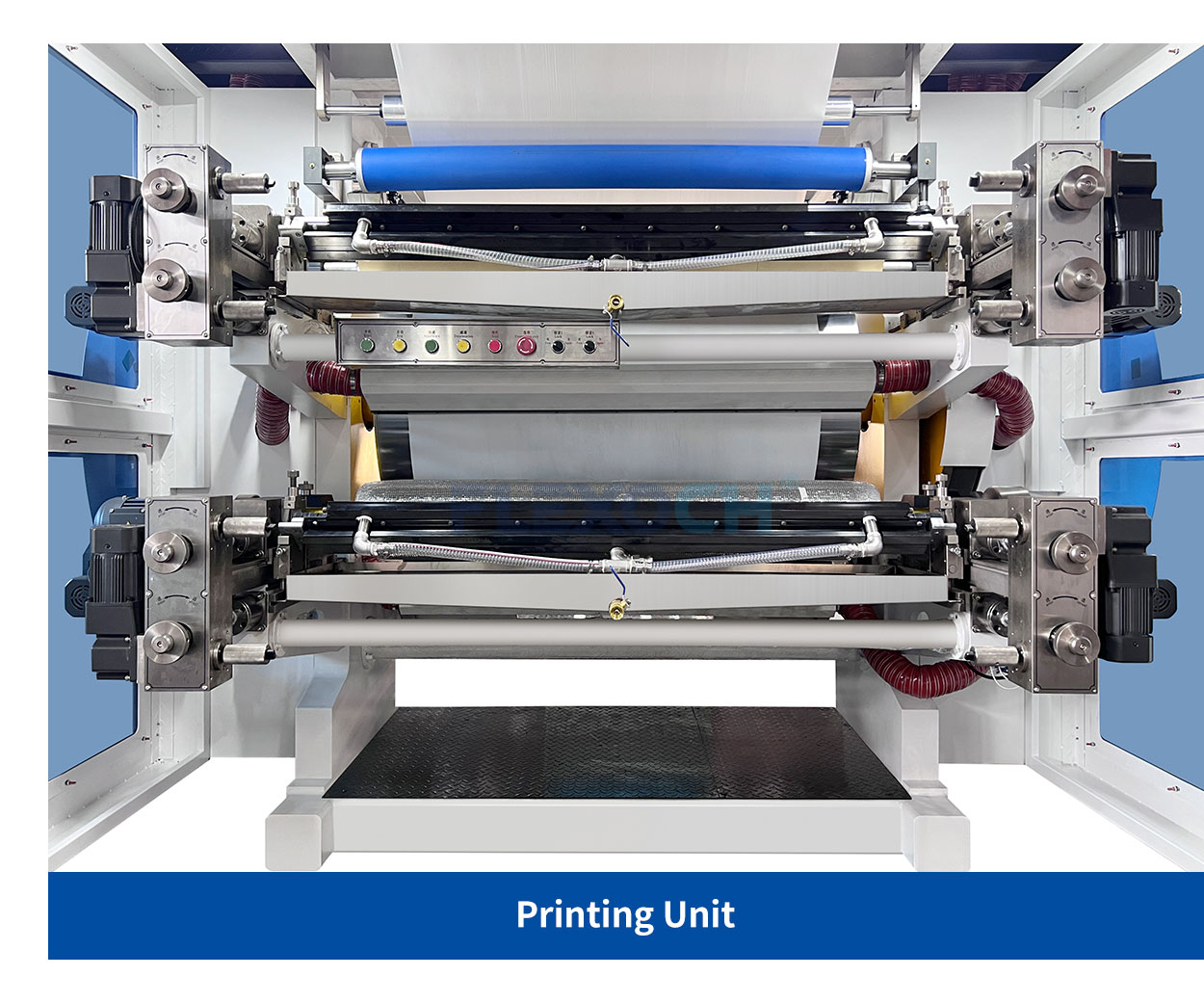

1. Central Impression Drum for Precise Registration

This 4-colour CI flexo printing machine has a dedicated central impression drum, ensuring stable operation, even ink transfer and higher overprint accuracy—especially for plastic films, aluminum foils and other special substrates. It avoids printing deviations, delivering sharp patterns, uniform colors and superior print quality.

2. High-Speed Stable Operation for Higher Productivity

With a max speed of 250m/min, the machine enables high-speed continuous production while retaining printing precision and slitting quality. It balances efficiency and quality, meets large-volume orders easily and boosts your enterprise’s market competitiveness.

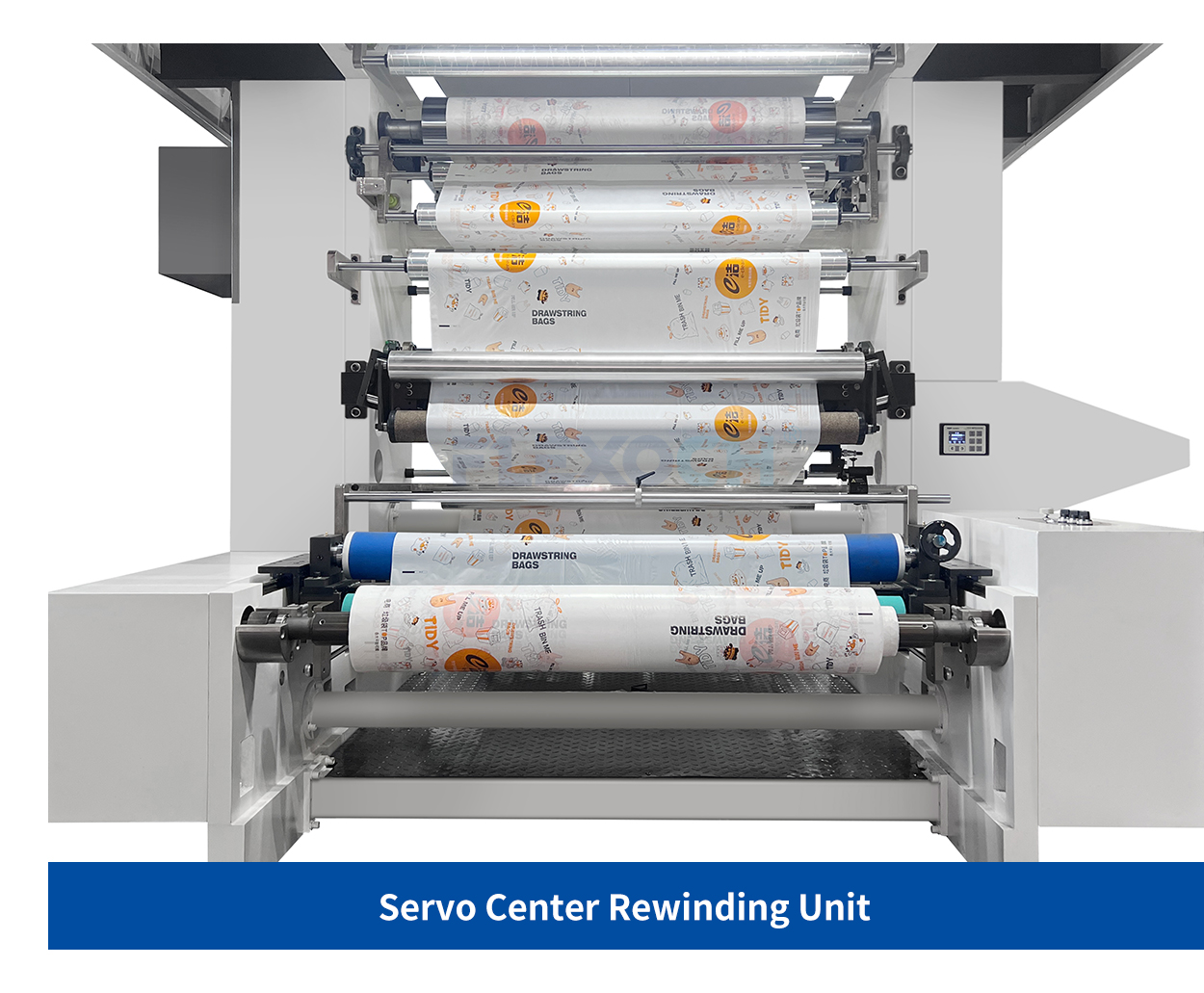

3. Servo winder System for Stable Tension Control

High-precision servo winder for accurate tension adjustment. For thin plastic films or special aluminum foils, it prevents stretching, wrinkling and deviation, raises yield greatly and adapts to various flexible substrates.

4. Integrated Slitting Function for Print-Slit Integration

Built-in slitting system links seamlessly with printing; slitting is done right after printing, no offline processing needed. It eliminates intermediate handling, boosts production efficiency and cuts labor and time costs.

5. Full-Web Turning Design for Easy Double-Sided Printing

Equipped with an integrated full-web turning bar for full web reversal, it does double-sided printing in one pass—no reloading or re-registration needed, boosting production flexibility and efficiency.

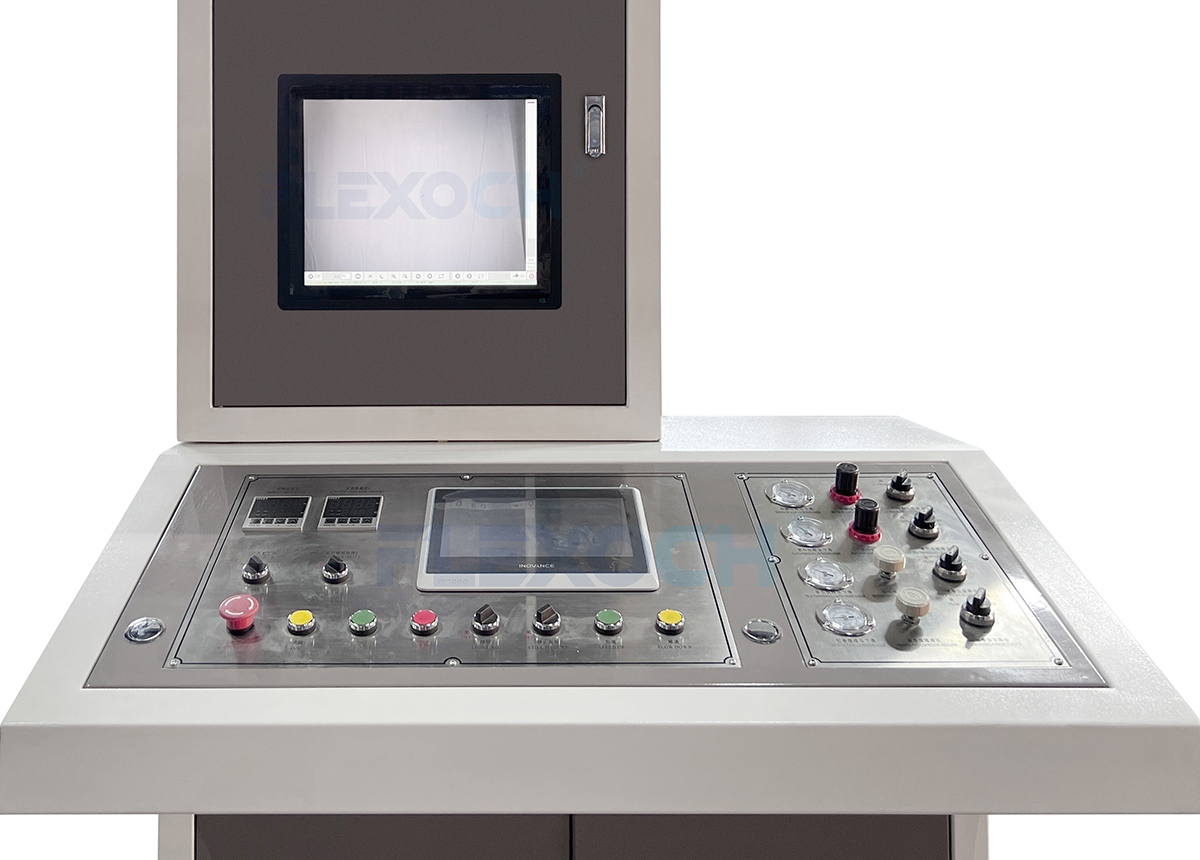

6. Intelligent Control for Easier Operation and Maintenance

This CI flexo press has a user-friendly control panel with static image display, enabling simple operation, quick parameter setting and fast troubleshooting. It cuts operator workload and downtime, works with water and solvent-based inks, and boasts great versatility and environmental compliance.

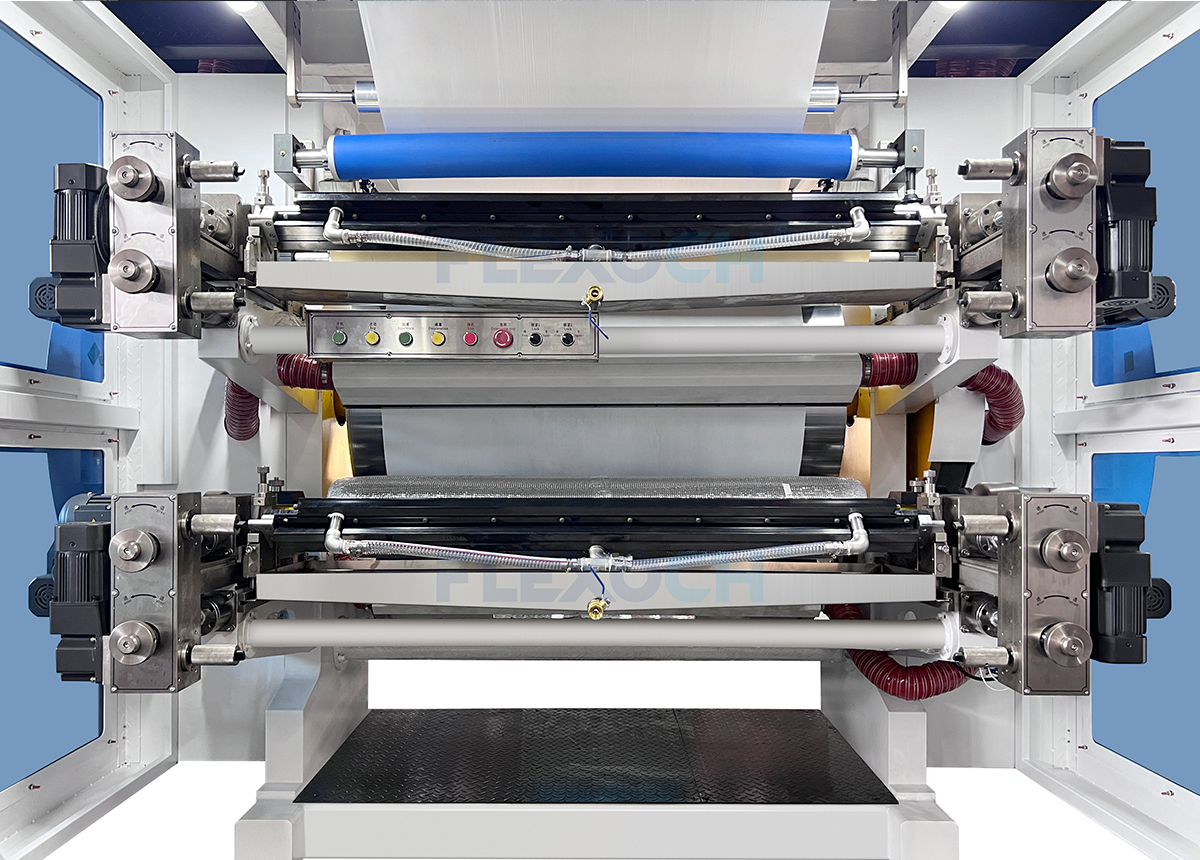

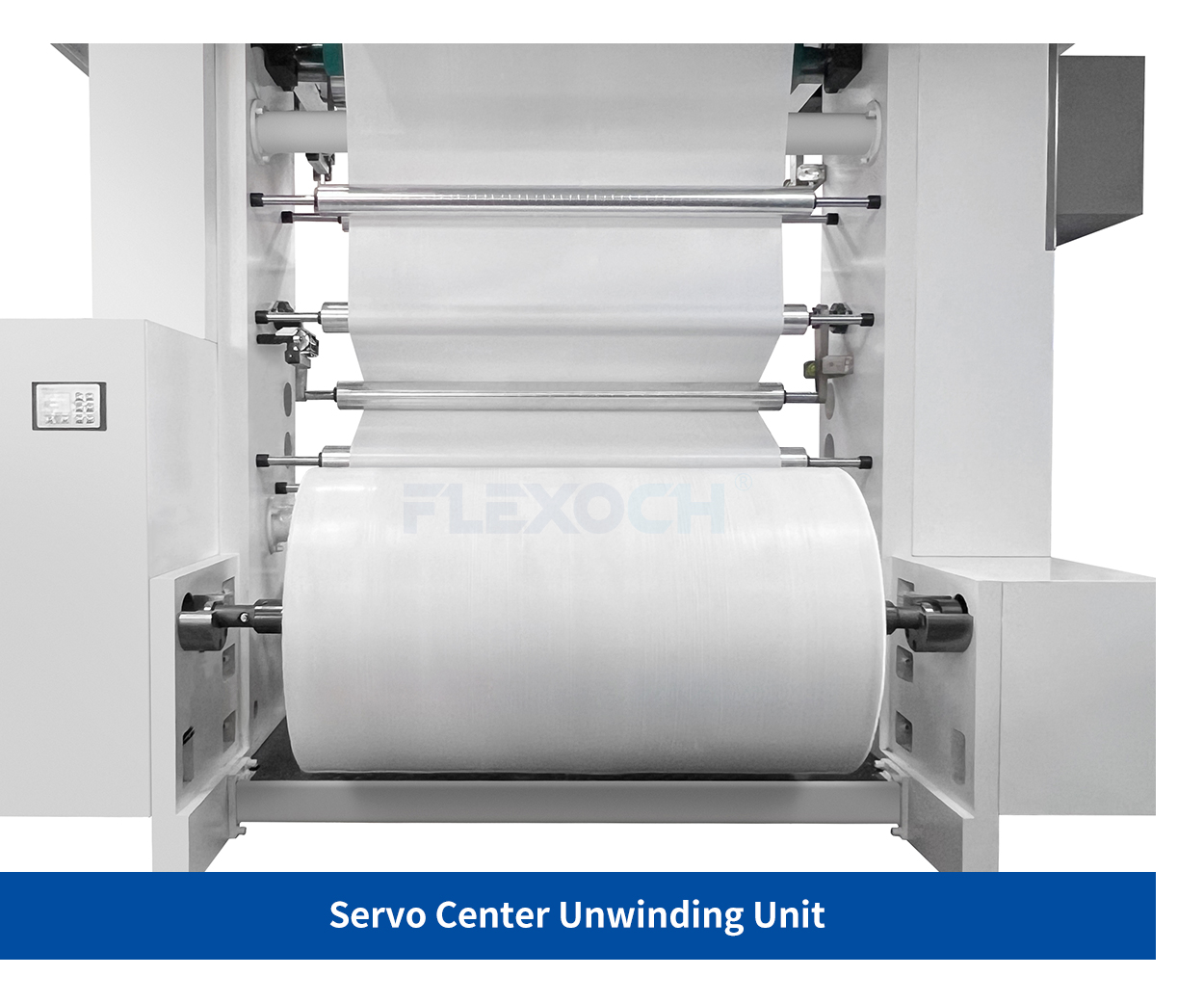

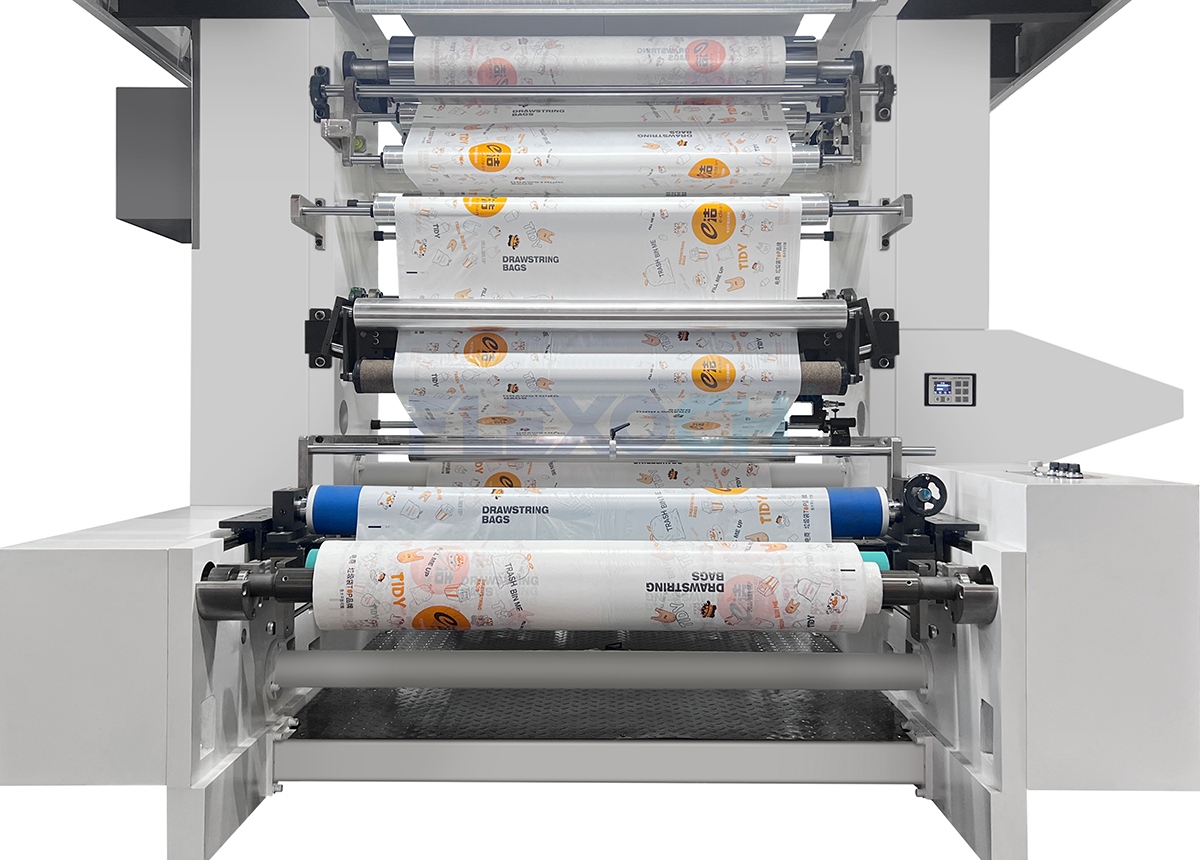

Details Dispaly

Printing Samples

Our printing samples focus on plastic films and aluminum foils, and also fit paper, non-woven fabrics and other common materials, matching the equipment's printing capacity precisely. Boasting great printing performance, the samples have pure vivid colors, sharp pattern outlines and accurate registration, no smudging, color shift or blurring, fully restoring the original design.

Synchronous double-sided printing gives consistent color and texture on both sides, neat pattern alignment, no need for secondary adjustments. For thin plastic films and special aluminum foils, our central impression flexo press produces flawless prints—no scratches, missing prints or wrinkles. We make custom samples to customer design needs, ideal for all kinds of packaging applications.

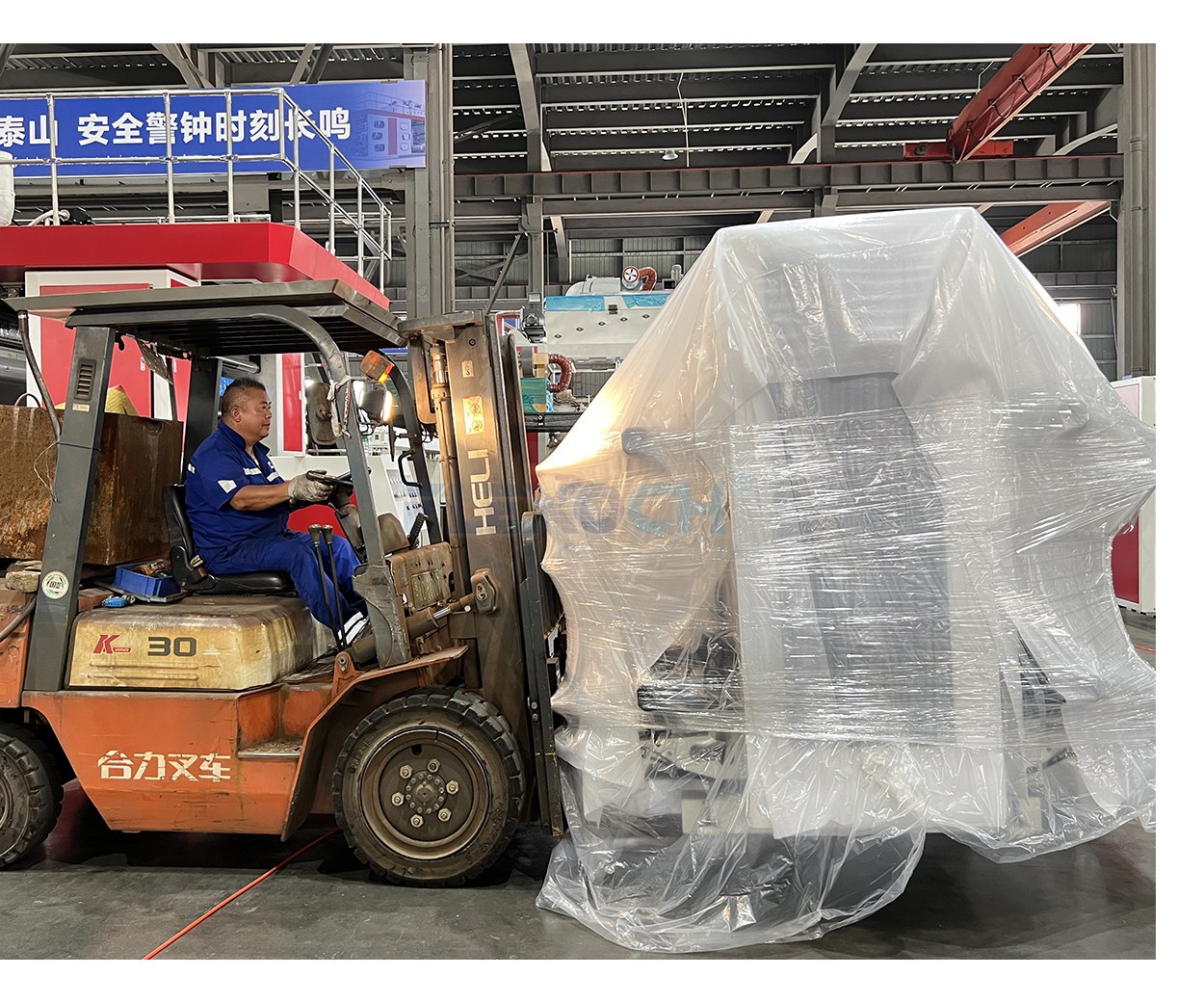

Packaging And Delivery

Our 4-color CI flexo printing machine has custom safety packaging – it keeps moisture, rust and impact out, cutting transit damage and making sure the machine arrives intact. We also tweak packaging to fit your shipping routes, environmental rules and export requirements.

We only work with trusted heavy machinery logistics partners. Their pro teams handle loading, unloading, securing and shipping to strict standards, with real-time tracking. We can provide all export customs docs you need for smooth clearance.

When the equipment gets to you, we send on-site guidance for quick handover, so installation and commissioning can start right away. We look after your whole procurement and production process, so you’ve got nothing to worry about.

Our Certificates

We always put product quality and compliance first, strictly adhering to international production standards and industry norms. We have successfully obtained a number of authoritative international certifications including CE and ISO, with complete and valid qualifications.

All certifications cover equipment quality control, safe operation, environmental compliance and export standards, fully guaranteeing stable performance and reliable quality of the equipment in printing applications. They are strong proof of our technical strength and a solid foundation for providing global customers with high-quality products and services, giving you worry-free purchasing and reliable operation.

FAQ

Q1: Do you provide technical training after purchasing the equipment?

A: Yes. Our technicians provide on-site training for operation, maintenance and troubleshooting to help your team start production quickly.

Q2: What is the maximum printing width of this 4-colour CI flexo printing press?

A: The maximum printing width is customizable. Standard widths fit most packaging needs; special sizes can be configured in advance.

Q3: Does the CI flexographic press support water-based ink?

A: Yes. It supports eco-friendly water-based inks and also works with solvent-based inks for flexible production choices.

Q4: What should be noted for daily maintenance, and is the maintenance cost high?

A: Daily maintenance only needs simple cleaning and lubrication. High-quality parts mean low wear and controllable cost. We offer full maintenance guidance.

Q5: Are there clear ranges for the printing width and thickness the machine supports?

A: Width is customizable. The machine runs stably with proper thickness for plastic films, aluminum foils and other packaging materials.
