Best High Quality Printer For Paper Bag Manufacturer – 6 Colour Stack Type Flexo Printing Machine – Changhong Printing

TECHNICAL SPECIFICATIONS

We have been also specializing in improving the things administration and QC system to ensure that we could preserve terrific gain within the fiercely-competitive company for Paper Printing Machine, Printer Logo Machine, Digital Flexo Printing Press, We cordially welcome customers from at home and abroad to join us and cooperate with us to enjoy a better future.

Best High Quality Printer For Paper Bag Manufacturer – 6 Colour Stack Type Flexo Printing Machine – Changhong Printing Detail:

Model	CH-600H	CH-800H	CH-1000H	CH-1200H
Max. Web Width	600mm	800mm	1000mm	1200mm
Max. Printing Width	550mm	750mm	950mm	1150mm
Max. Machine Speed	120m/min
Printing Speed	100m/min
Max. Unwind/Rewind Dia.	φ1000mm or φ1200mm( can according to your requirement)
Drive Type	Gear drive/Belt Drive( According to your requirement)
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified）
Ink	Water base ink or solvent ink
Printing length (repeat)	270mm-900mm
Range Of Substrates	PAPER，NON WOVEN
Electrical supply	Voltage 380V. 50 HZ.3PH or as your requirement to make it

1. Unwind unit adopts single-station or double-station structure; 3″air shaft feeding; Automatic EPC and constant tension control;With refueling warning, break material stop device.

2. The main motor is controlled by frequency conversion, and the whole machine is driven by high-precision synchronous belt or servo motor.

3. The printing unit adopts ceramic mesh roller for ink transfer, single blade or chamber doctor blade, automatic ink supply; Anilox roller and plate roller automatic separating after stop; The independent motor drives the anilox roller to prevent ink from solidifying on the surface and blocking the hole.

4. Rewinding pressure is controlled by pneumatic components.

5. Rewind unit adopt single-station or double-station structure; 3 “air shaft; Electric motor drive, with closed – loop tension control and material – breaking stop device.

6. Independent drying system: electric heating drying (adjustable temperature).

7. The whole machine is centrally controlled by PLC system; Touch screen input and display the working state; automatic meter counting and multi – point speed regulation.

1. Polyethylene, polyethylene plastic film printing

2. Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing

3. Roller paper and craft paper printing

4. PP woven bag , pvc film, bopp film, printing

5. Laminated bag rolling printing

6. Non woven rolling printing

7. Rice bag pp woven printing

8. Paper printing

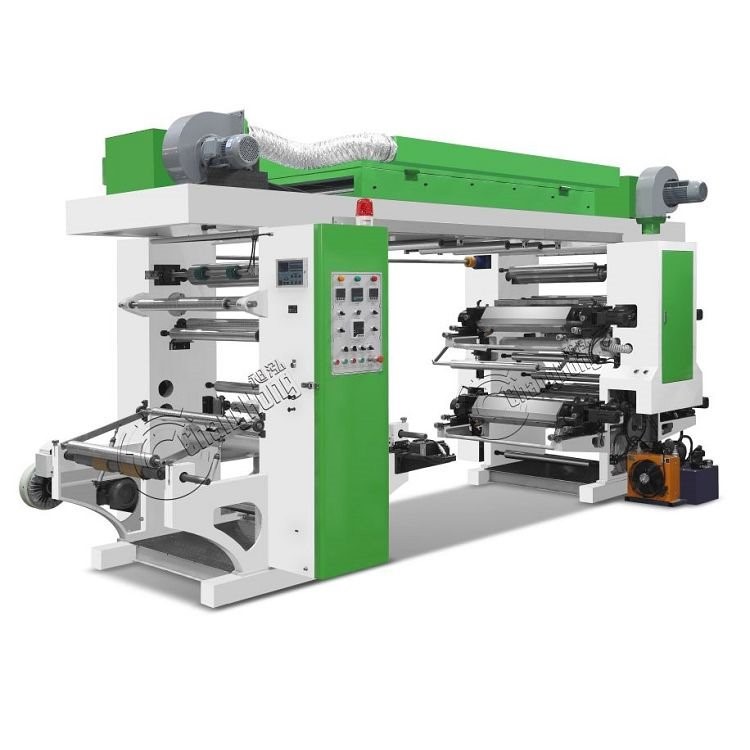

Product detail pictures:
