I. What is a Servo Stack Type Flexo Printing machine?
The servo stack flexographic printing machine is an intelligent device in the field of flexography, integrating servo drive technology and a stacked unit structure. It is specially designed for high-precision multi-color printing requirements. Its core principle lies in abandoning the traditional mechanical long transmission shaft and equipping each printing unit with an independent servo motor. Multi-axis synchronous control is achieved through electronic signals, and the stacked layout enables independent operation and precise coordination of each printing unit, fundamentally solving the pain points of traditional models such as large synchronization errors and registration offset.
Compared with conventional flexographic printing machines, this equipment replaces "mechanical linkage" with "electronic linkage". Combined with a high-precision visual registration system and closed-loop tension control, it can realize stable printing on various substrates such as PE, PET, kraft paper, and aluminum foil. The stacked structure cuts down on floor space a lot. Every unit comes with independent sealed protection, which effectively prevents ink contamination and debris interference, and further ensures printing quality. It’s widely used in packaging, labeling, commercial printing and other fields, making it a top pick for eco-friendly and efficient printing.
II. Core Features of Servo Stack Type Flexo Printing machine
1. Ultra-Stable Registration Accuracy
Relying on servo transmission, the stack flexographic printing press enables precise coordination of multiple units, controlling registration errors within an extremely narrow range, which is far superior to traditional models. Equipped with a static image visual registration system, it can automatically complete horizontal and vertical registration correction throughout the process, reducing manual intervention and material waste significantly, and achieving an extremely high registration qualification rate in long-run production.
2. Flexible Operation & Outstanding Efficiency
Adopting a modular design, each printing unit allows independent adjustment of the ink system, printing pressure and registration parameters. The plate changing, ink feeding and proofing processes are highly efficient and convenient, greatly shortening production preparation time. Meanwhile, the ultra-short web path design reduces material loss, and the active servo tension control system can adjust tension in real time, enabling stable printing on stretch-sensitive substrates such as films and papers, and avoiding wrinkles, deformation and other defects.
3.Green & Efficient, Fully Compatible
It works seamlessly with eco-friendly inks like water-based and UV variants. Paired with laser-engraved anilox rollers for accurate ink metering, it boosts ink transfer efficiency, cuts down VOC emissions and ink waste significantly, and meets major environmental standards. It comes with hot air, infrared and UV drying systems. You can pick the right one based on ink types and substrate features. The drying is even and fast, preventing ink sticking and fading. It’s ideal for high-demand applications like food packaging and pharmaceutical labeling that require top-tier safety, precision and eco-friendliness.
4. Intelligent Operation & Maintenance with Controllable Costs
Integrated with a fully digital control system, it supports storage, retrieval and customization of tension parameters, and is equipped with an independent operation interface, enabling quick mastery even for novice operators. Core components are made of high-quality materials with precision manufacturing processes, featuring strong durability. The comprehensive cost of long-term use is significantly lower than that of traditional models.

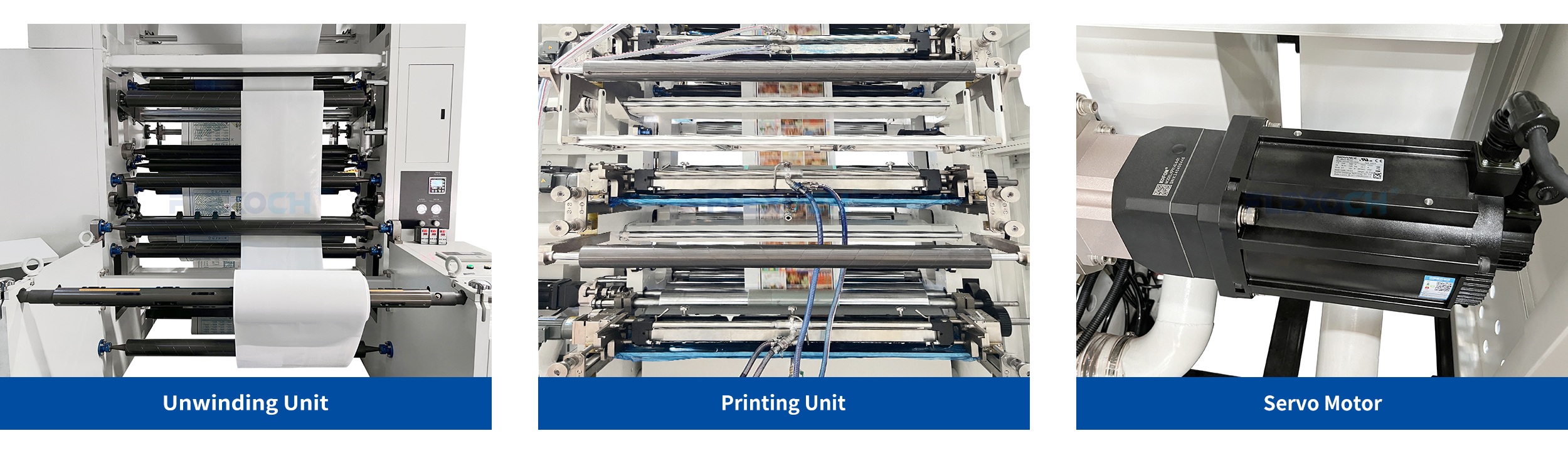

● Machine Details
III. Specific Advantages of 6-Color and 8-Color Models
1. 6-Colour Servo Stack Flexo Printing Machine: The Perfect Balance of Cost-Effectiveness and Quality
Based on the standard CMYK four-color configuration, the 6-color model adds 2 independent color groups, greatly improving production efficiency and product integrity. Its core advantage lies in balancing printing speed and color expression, accurately reproducing pattern gradients and color layers, ensuring color consistency in batch printing, and meeting medium-complexity printing needs. Whether for mass-produced food labels or small-batch customized packaging, it can balance quality and cost, adapting to diverse production scenarios.
Typical application scenarios cover food, daily chemicals and general flexible packaging. It’s ideal for businesses chasing personalized designs with moderate budgets. The equipment works with all mainstream substrates, meets most commercial printing quality needs, and stands as a mid-range model with high market penetration.
● Video Introduction

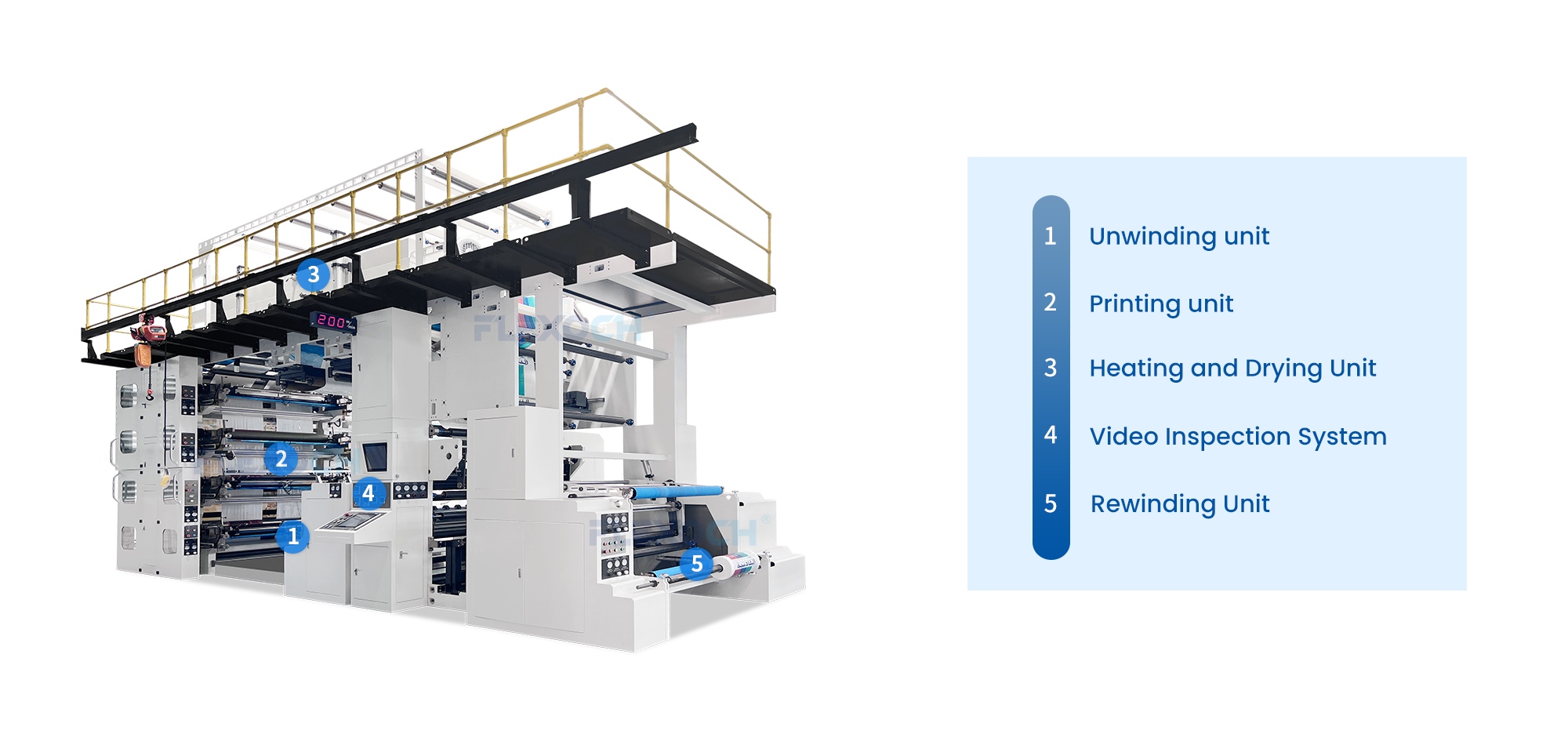

2. 8-Colour Servo Stack Type Flexo Printing Machine: The First Choice for High-End Customization and Ultimate Quality
On the basis of the 6-color model, the 8-color model provides additional color group capacity, enabling multi-special color overprinting, rendering finer graphic details, richer color layers and unique visual textures. It is perfectly suitable for high-definition patterns, complex patterns and high-end design requirements. Through flexible combination of color groups, it can also achieve special functions such as security ink printing and 3D effect reproduction. It is especially suitable for enterprises with stringent requirements for printing quality targeting the high-end market, enabling high-precision graphic reproduction.
● Video Introduction
IV. Expansion Modules: Technology Upgrading and Scenario Empowerment
1. Core Technology Upgrade Paths
The stack flexo press can be equipped with laser direct imaging (LDI) technology, combined with digital lithography processes to improve plate-making accuracy and efficiency. Integrated with online inspection equipment for real-time printing quality monitoring, it realizes closed-loop color control to ensure consistency in batch production. Meanwhile, it is equipped with an automatic edge position control (EPC) system, which can detect the edge position of substrates in real time and complete automatic correction quickly, avoiding registration errors and waste products caused by substrate offset, further enhancing the stability of printing accuracy. Going forward, it can also integrate digital twin tech to simulate the whole printing process, optimize parameters, predict production risks, and use AI algorithms to adjust printing parameters automatically, forming a fully automated smart production line.
2. Key Points for Daily Operation, Maintenance and Upkeep
Scientific operation, maintenance and upkeep are the keys to ensuring stable stack flexo printer operation, extending service life, maintaining registration accuracy, and reducing failure and maintenance costs. It is necessary to follow the principles of "regular inspection, precise cleaning, standardized lubrication and on-demand replacement".
● Cleaning Work: Focus on core printing components. After daily operation, thoroughly clean ink pipelines, anilox rollers and doctor blades, and remove residual ink in a timely manner to avoid subsequent printing accuracy issues and component operation failures caused by ink drying and hardening.
● Regular Calibration: Perform regular parameter calibration on core equipment systems such as the tension control system, correct deviations in a timely manner, ensure the coordinated operation of all systems, maintain high-precision printing status at all times, and avoid registration errors caused by parameter drift.
● Scheduled Replacement & Fault Prediction: Stock up on spare parts such as doctor blades and printing plates, conduct regular inspections, carry out comprehensive testing on core components such as servo motors and control systems, troubleshoot potential problems, and avoid sudden failures.

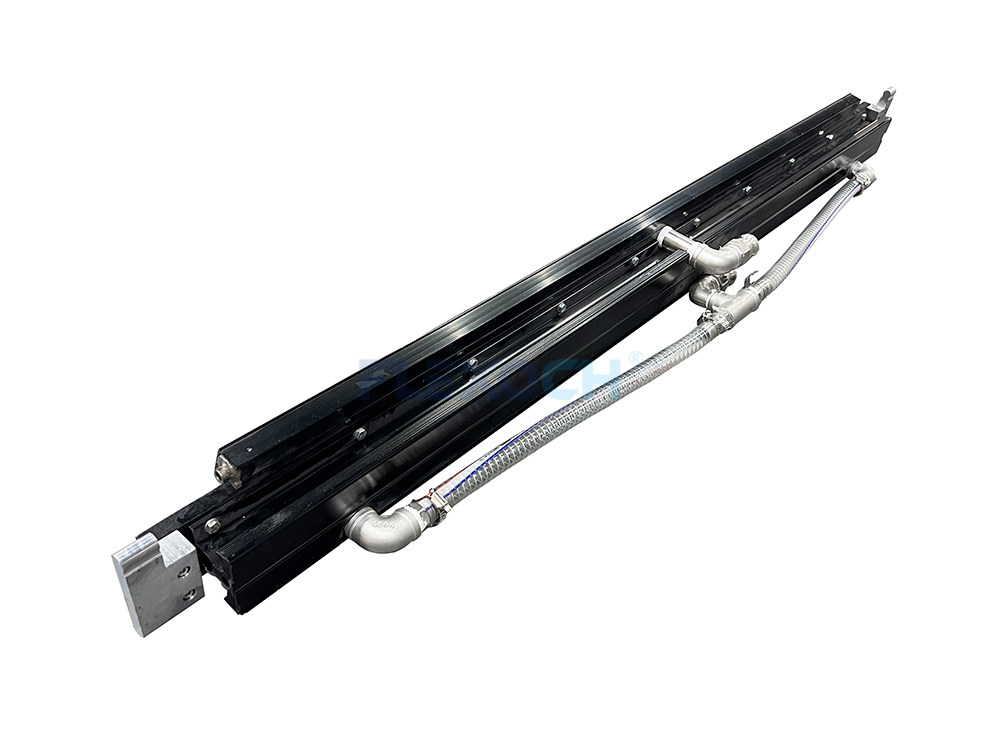

Chamber doctor blade

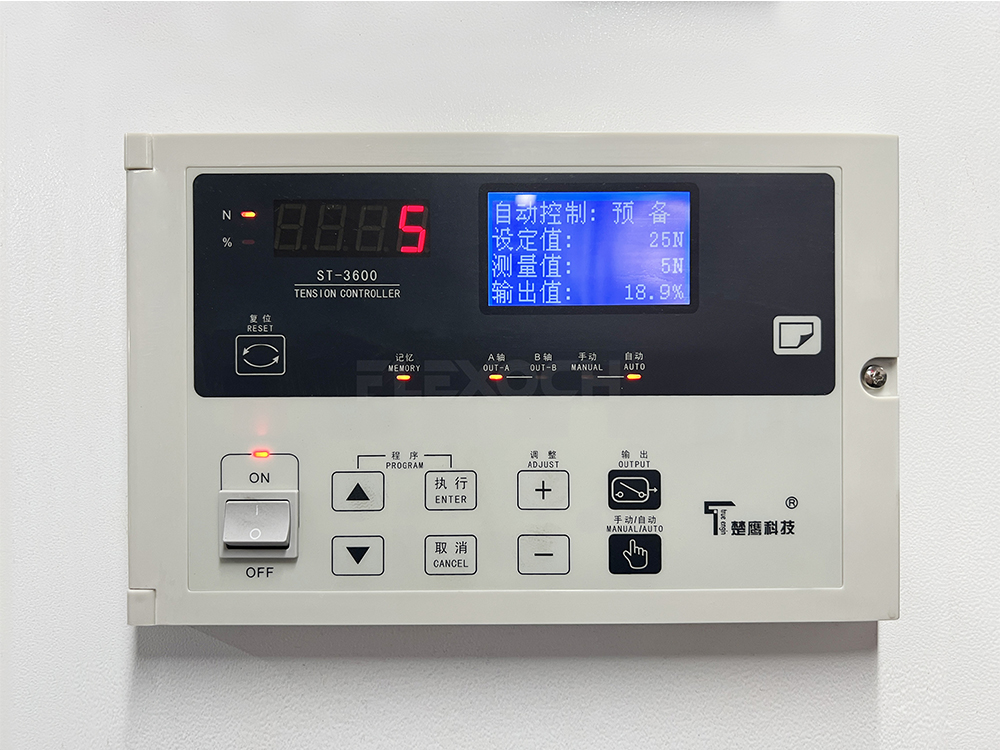

Tension control

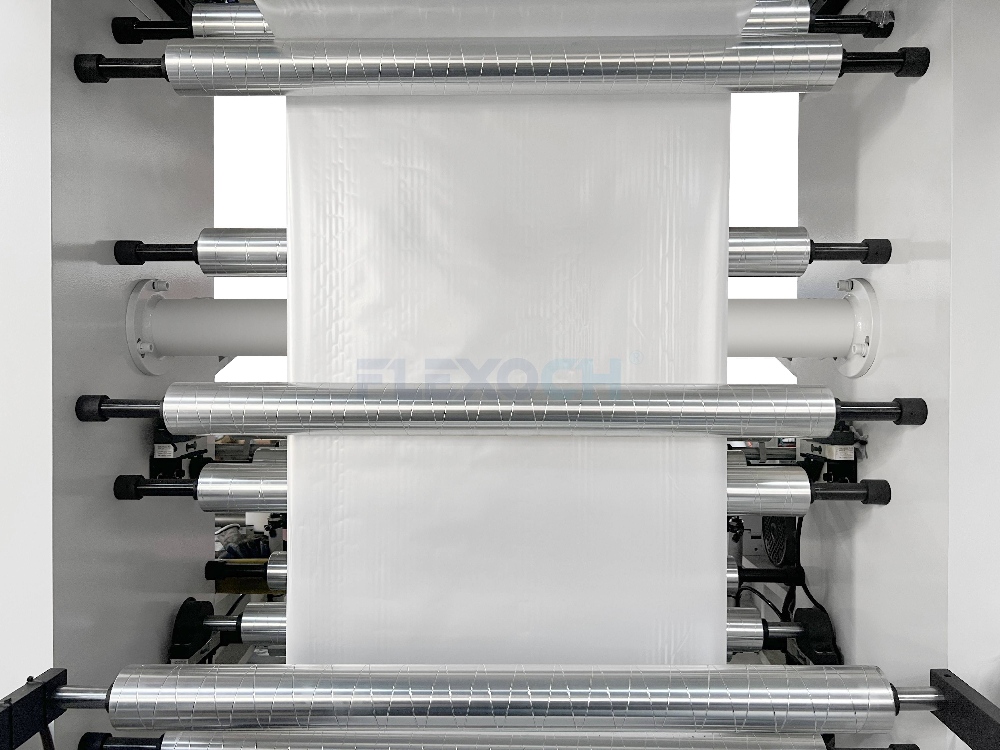

Guide roller
3.In-Depth Adaptation to Industry Scenarios
● Food Packaging: Water-based inks and high-precision registration are applied here. They meet ink residue standards, satisfy food industry safety requirements, and fit diverse flexible packaging and label printing needs.
● Pharmaceutical Packaging: We strictly follow pharma industry regulations, ensure clear, error-free printing, display product info and security marks precisely, and guarantee safe, standardized packaging.
● Daily Chemical Packaging: Rich color schemes and custom processes are available. They meet high-end packaging needs of tissue bags and laundry detergent bags, and enhance product visual texture and brand recognition.
● Printing Sample
V. Conclusion:
As a benchmark equipment in the field of flexography, the 6/8 colour servo stack flexo printing machine takes stable registration as its core competitiveness. With multiple advantages including flexible operation, green environmental protection and intelligent operation and maintenance, it accurately meets the printing needs of different industries and levels. The 6-colour model balances cost-effectiveness and quality, providing efficient solutions for small and medium-sized enterprises and the mid-end market; the 8-colour model focuses on high-end customization, helping enterprises break through process bottlenecks and create differentiated products.
Both models can help enterprises improve production efficiency, optimize product texture and reduce comprehensive costs. In the wave of transformation towards intelligence, high quality and environmental protection in the packaging and printing industry, they have become powerful partners for enterprises to reduce costs, increase efficiency and build core competitiveness. In the future, with continuous technological upgrading, this series of stack printing machine will further break through performance boundaries, integrate more intelligent and digital functions, inject more innovative vitality into the printing industry, and help the industry achieve higher-quality sustainable development.
