China wholesale Wide Web Flexo Printing Machine Factory – Stack Type Flexo Printing Machine For Plastic 6 Colors – Changhong Printing

TECHNICAL SPECIFICATIONS

Our mission should be to turn out to be an innovative supplier of high-tech digital and communication devices by furnishing benefit added design and style, world-class manufacturing, and repair capabilities for Flexo Printing Press, Flex Banner Printing Machine, With Water Ink Printing Machine, We welcome shoppers, business enterprise associations and close friends from all sections with the globe to contact us and seek cooperation for mutual added benefits.

China wholesale Wide Web Flexo Printing Machine Factory – Stack Type Flexo Printing Machine For Plastic 6 Colors – Changhong Printing Detail:

Product Video

Technical Specifications

MODEL	CH-H Series（Can be customized according to customer production and market requirements）
Number of printing decks	4/6/8
Max Machine Speed	150m/min
Printing Speed	30-120m/min
Printing Width	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Roll Diameter	Φ800/Φ1000/Φ1500 （optional）
Ink	water based / slovent based / UV/LED
Repeat Length	270mm-1200mm
Drive Method	Gear drive / Belt drive
Main Processed Materials	Films; Paper; Non-Woven

Function Description

Center drive unwinding & rewinding
Manual register and pressure control
Chamber doctor blade quantitative ink supply system
Automatic tension, edge, and web guide control
Real time static image monitoring printing quality
Adjustable temperature control and centralized drying after printing
Double Side printing

Machine Features

Machine form: High precision gear transmission system,Use big gear drive and register the color more accurate.
The structure is compact. The parts of the machine can interchange standardization and easy to get. And we chooser low abrasion design.
The plate is really simple. It can save more time and cost less.
The printing pressure is smaller. It can decrease the waste and make the service life longer.
Print many kinds of material include various thin film reels.
Adopt High precision cylinders, guiding rollers and high quality Ceramic Anilox roller to increase the printing effect.
Adopt imported electric appliances to make the electric circuit control stability and safety.
Machine Frame: 75MM thick iron plate. No vibration at high speed and have a long service life.
Double Side printing.
Automatic tension, edge, and web guide control.
We can also customize the machine according to customer requirements.

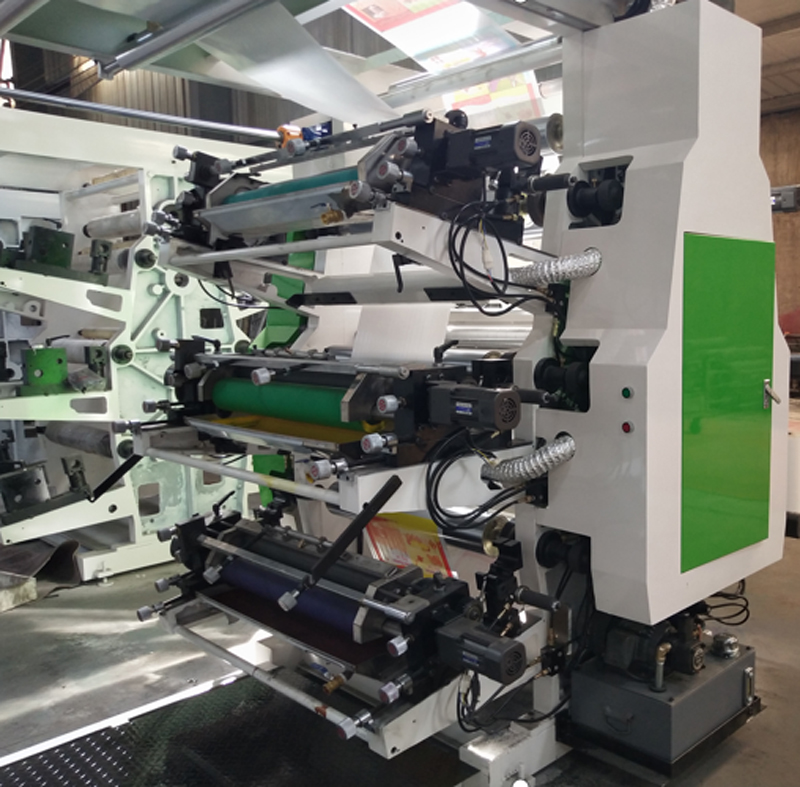

Detailed Machines Pictures

product-description1

product-description3

Sample

product-description4
product-description5
product-description6
product-description7

Product detail pictures:

Related Product Guide:

Sticking to the belief of Creating products of high quality and making friends with people from all over the world, we always put the interest of customers in the first place for China wholesale Wide Web Flexo Printing Machine Factory – Stack Type Flexo Printing Machine For Plastic 6 Colors – Changhong Printing , The product will supply to all over the world, such as: Peru, Suriname, Bandung, Furthermore, all of our items are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. If you are interested in any of our goods, please don't hesitate to contact us. We will do our best to meet your needs.
