China wholesale Small Fabric Non Woven Printing Machine Supplier – Paper Flexo Printing Machine – Changhong Printing Detail:

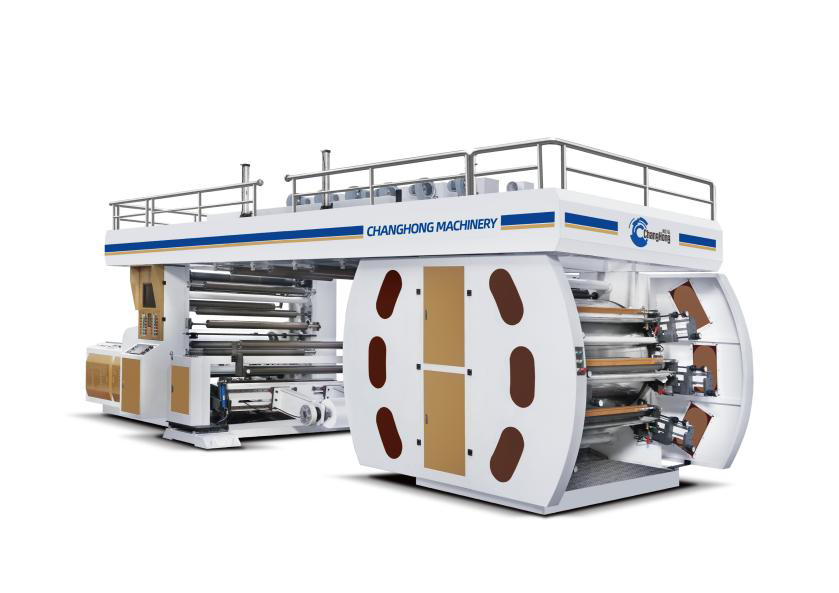

Central Drum CI type flexo printing machine is designed for stretchable materials as plastic film ,paper,and non woven fabric printings. Machine with Servo control, applies with water-based ink, achieves environmentally friendly, high precision and low pollution. Machine advanced features in efficiency operation and production cost savings. Also, it is very flexible in customerized of printing after-line function extensions and maximally meet customer demands in production.

图片1(2)

Model	CHCI8-600S	CHCI8-800S	CHCI8-1000S	CHCI8-1200S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	550mm	750mm	950mm	1150mm
Max. Machine Speed	300m/min
Printing Speed	250m/min
Max. Unwind/Rewind Dia.	φ1200mm
Drive Type	Gear drive
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified）
Ink	Water base ink or solvent ink
Printing length (repeat)	400mm-900mm
Range Of Substrates	50-400g/m2 Paper. Non woven Etc.
Electrical supply	Voltage 380V. 50 HZ.3PH or to be specified

● Central Drum impression cylinder with double wall constant temperature cooling circulation design.

● 100mm extreme thickness frame to ensure the stability of printing operation.

● Independent dryer between printing units for high drying efficiency.

● Sleeve design printing cylinder and anilox roll for fast change over.

● Servo motor control in printing pressures.

● Pre-printing and automatic registration system — one step to print, achieves cost savings.

● Long-distance fault diagnosis function, diagnose and troubleshoot from the company base.

● Automatic unwind and rewind function for more efficiency in production and waste reducing.

● Surrounding type multi electrode corona treatment system helps film printing in better performance.
