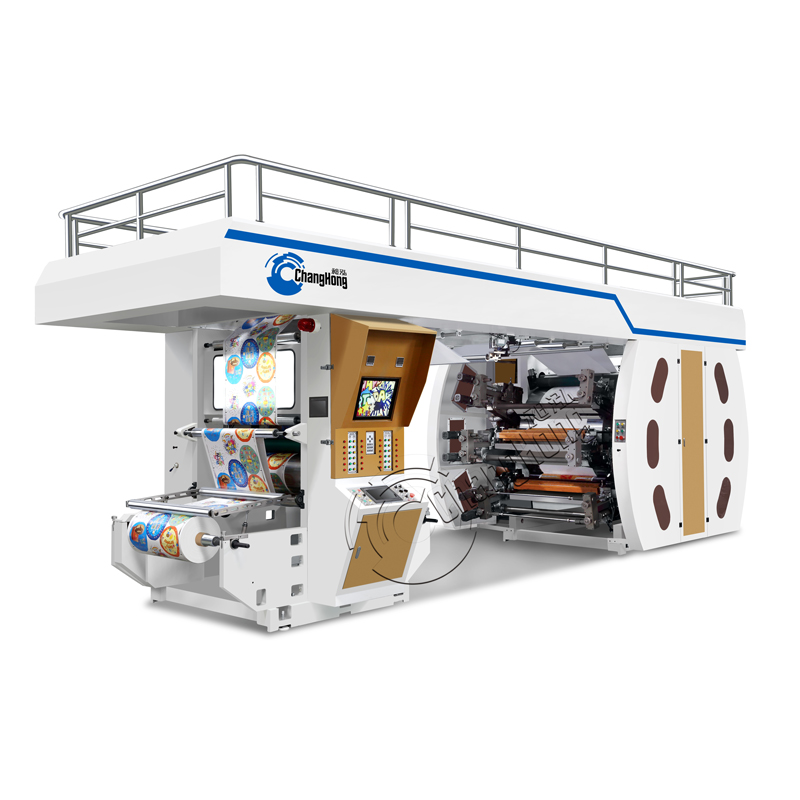

China wholesale Flexo Printing Equipment Manufacturer – 6+6 CI Flexo Printing Machine – Changhong Printing

TECHNICAL SPECIFICATIONS

That has a sound business enterprise credit rating, exceptional after-sales provider and modern producing facilities, we now have earned an superb standing amongst our buyers across the world for Flexographic Printing Equipment, Polythene Pouch Printing Machine, Machine To Print On Plastic Bags, We are highly aware of quality, and have the certification ISO/TS16949:2009. We are dedicated to supply you high quality products with reasonable price.

China wholesale Flexo Printing Equipment Manufacturer – 6+6 CI Flexo Printing Machine – Changhong Printing Detail:

Product Video

Technical Specifications

Material: PP-woven, coated or uncoated

Max. printing material width: 850mm

Max. printing width: 750mm

Max. Printing length(repeat): 450–1200mm

Printing way: 6+6，6+5，6+4，6+3，6+2.6+1,6+0

Max machine speed：180 m/min

Max printing speed: 150m/min (According to material specifications, ink characteristics, printing design, printing roller, register quality, etc.)

Max. unwind diameter: 1500 mm

Max. rewind diameter: 1500mm

Ceramic anilox roller: 8 pcs (As customer requirement)

Thickness of Plate: Photopolymer plate 1.14mm(As customer requirement)

Double adhesive tape: 0.38mm

Cental drum:

Basic structure: it is a double-layer structure steel pipe, which is processed by multi-channel heat treatment and shaping process.

The surface adopts precision machining technology.

The surface plating layer reaches more than 100um, and the radial circle run out tolerance range is + / -0.01mm.

Dynamic balance processing accuracy reaches 10g

Mix ink automatically when the machine stops to prevent ink from drying

When the machine stops, the anilox roll leaves the printing roller and the printing roller leaves the central drum.But the gears are still engaged.

When the machine starts again, it will reset automatically, and the plate color registration / printing pressure will not change.

Electrical Parts:

Power: 380V 50HZ 3PH

Note: If the voltage fluctuates, u can use voltage regulator, otherwise the electrical components may be damaged.

Cable size: 50 mm² Copper wire

Electrical Spart part detail :

PLC	Siemens, Germany
Main bearing	FAG, Germany/ NSK, Japan
Circuit-Breaker	CHINT. China
Rotary Switch	Schneider, Germany
E-stop Switch	Schneider, Germany
Inverter	Inovance, China
Button Switch	Schneider, Germany
Temperature controller	Yatai
Relay	Schneider, Germany
EPC	Made in China
Automatic Tension	Chuying, China
Main motor	Danma, China
Video	Kesai, China

Process Flow Diagram

product-description1

Detailed Machines Pictures

product-description2

product-description3

Printing Sample

Product detail pictures:

Related Product Guide:

Sincerity, Innovation, Rigorousness, and Efficiency may be the persistent conception of our organization to the long-term to build together with shoppers for mutual reciprocity and mutual advantage for China wholesale Flexo Printing Equipment Manufacturer – 6+6 CI Flexo Printing Machine – Changhong Printing , The product will supply to all over the world, such as: Melbourne, Libya, Anguilla, With the first-class products, excellent service, fast delivery and the best price, we have won highly praise foreign customers'. Our products have been exported to Africa, the Middle East, Southeast Asia and other regions.

Automatic 6 Colors Flexographic Printing Machine
