China wholesale Central Drum Flexographic Printing Machine Manufacturer – Stack Type Flexo Printing Machine For Plastic 8 Colors – Changhong Printing

TECHNICAL SPECIFICATIONS

Our company sticks into the basic principle of Quality is definitely the life of the business, and status may be the soul of it for Central Impression Flexo Printing Machine, Flexo Graphic Printing Machine, Coffee Bag Printing Machine, To supply prospects with superb equipment and providers, and constantly build new machine is our company's organization objectives. We look ahead for your cooperation.

China wholesale Central Drum Flexographic Printing Machine Manufacturer – Stack Type Flexo Printing Machine For Plastic 8 Colors – Changhong Printing Detail:

Product Video

Machine Features

Machine form: High precision gear transmission system,Use big gear drive and register the color more accurate.
The structure is compact. The parts of the machine can interchange standardization and easy to get. And we chooser low abrasion design.
The plate is really simple. It can save more time and cost less.
The printing pressure is smaller. It can decrease the waste and make the service life longer.
Print many kinds of material include various thin film reels.
Adopt High precision cylinders, guiding rollers and high quality Ceramic Anilox roller to increase the printing effect.
Adopt imported electric appliances to make the electric circuit control stability and safety.
Machine Frame: 75MM thick iron plate. No vibration at high speed and have a long service life.

Technical Specifications

Model	CH8-600H	CH8-800H	CH8-1000H	CH8-1200H
Max. Web Width	600mm	800mm	1000mm	1200mm
Max. Printing Width	550mm	750mm	950mm	1150mm
Max. Machine Speed	150m/min
Printing Speed	120m/min
Max. Unwind/Rewind Dia.	φ800mm
Drive Type	Gear drive/Belt Drive( according the customers requirement
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified）
Ink	Water base ink or solvent ink
Printing length (repeat)	270mm-1200mm
Range Of Substrates	LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon
Electrical supply	Voltage 380V. 50 HZ.3PH or to be specified

Detailed Machines Pictures

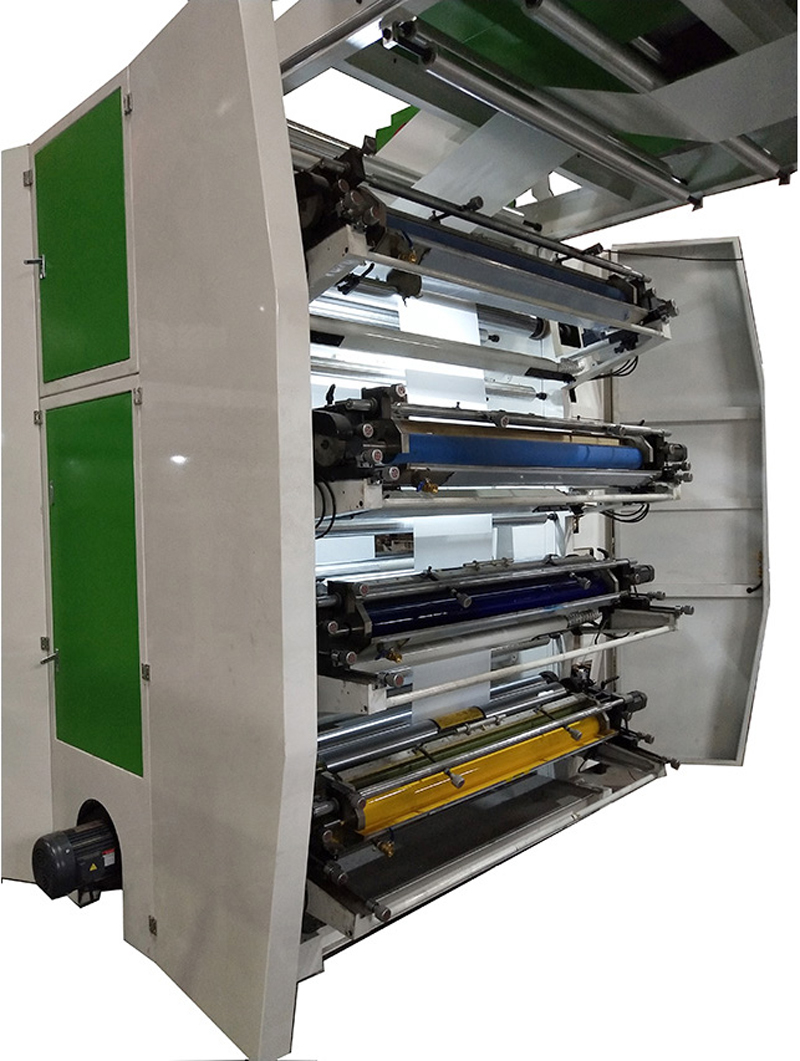

product-description1

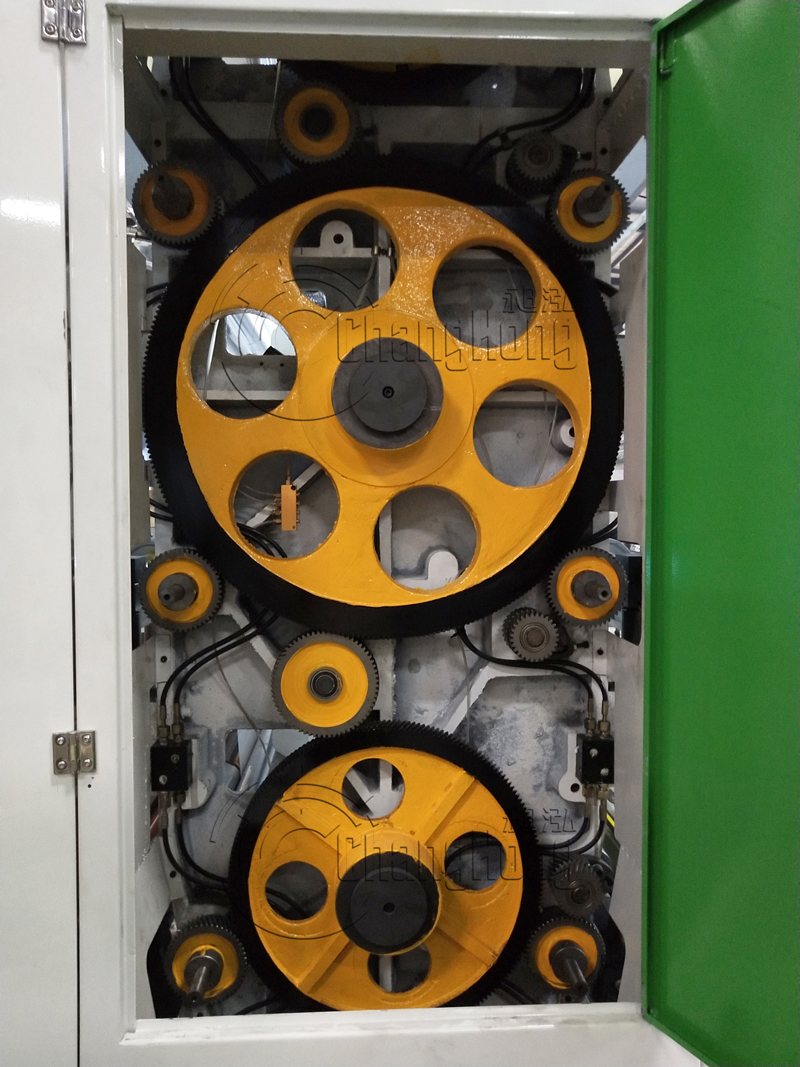

product-description2

Sample

product-description4
product-description5
product-description6
product-description7

Product detail pictures:
