Best High Quality Flexo Printing Machine 2 Color Suppliers – Economic Ci Printing Machine For Paper And Non Woven 6 Colors – Changhong Printing
Best High Quality Flexo Printing Machine 2 Color Suppliers – Economic Ci Printing Machine For Paper And Non Woven 6 Colors – Changhong Printing
Best High Quality Flexo Printing Machine 2 Color Suppliers – Economic Ci Printing Machine For Paper And Non Woven 6 Colors – Changhong Printing Detail:
Product Video
Technical Specifications
| Model | CHCI6-1200J |
| Printing color | 6color(6+0, one side printing, full width ) |
| Material feeding width | 600-1200mm( can according to your requirement to make it) |
| Max Printing width | 1150mm |
| Printing material | BOPP, PET, PE, OPP, PP, NY Etc. |
| Max printing length | 300-800mm |
| Machine speed | 150m/min |
| Printing speed | 120m/min( depend on material) |
| Register precision | Longitude:±0.15mm ; Transverse:±0.15mm |
| Printing way | Full width 6 color on one side. |
| Ink | Suitable water –base ink or slovent ink |
| Printing plate thickness | Photopolymer plate 1.7mm or 2.28mm (As customer requirement) |
| Master motor | 7.5 KW Domestic |
| The frequency converter | 7.5KW , inovance .Shenzhen |
| PLC | Inovance.Shenzhen |
| Machine total power | 65KW |
| Machine weight | 8200KG |
| Machine size | L6600*W2700*H3400 |
| Machine voltage | 3Phase, 380V, 50HZ |
If you want make different width of raw material, we also can according to your requirement to make it.
2. TRACTION UNIT
| Traction structure: | Aluminum roller, Chrome plated roller |
| Traction zone: | 2 zone, unwind and rewind zone |
| Main Bearings | NSK. Japan |
| aluminum alloy roll | Germany ASNU |
3. PRINTING UNIT
| Machine type | Mini Ci type-Gear drive |
| Frame thickness | 75mm |
| Anilox roller | Ceramic Anilox roller 6pcs, Japan murata Or. Yuncheng(250-800LPI, decided by client) |
| Doctor blade | Chamber doctor blade 3pcs. Open doctor blade 3 pcs |
| Printing pressure | Mechanic control |
| Plate rollers lifting | By Pneumatic |
| Color Register way | By Manual(Automatic printing after beforehand overprint. When start machine, no need register color again.) |
| Diameter of Central Drum | Φ1200mm, made in china |
4. Heating& Drying Unit
| Dryer on each color | Electrical heat drying |
| Blower | 2.2kw x 2pcs |
| Double Blower way circle | Centralized heat, exhaust gas pump back |
| Power of heating | 35 kw |
5. REWIND UNIT
| Max. rewind diameter | Φ800mm |
| Rewind Way | Center winder, with 10KG magnetic powder and clutch. |
| Tension control system | Automatic Tension controller 1pcs |
| Rewind material holder | By air shaft 3’’, 1pcs |
| Rewind motor | 2.2Kw, |
| Rewind web cylinder | Φ76mm (inner diameter) |
| Pressure control way | By mechnical |
| Rubber roller | Banana roller 1pcs |

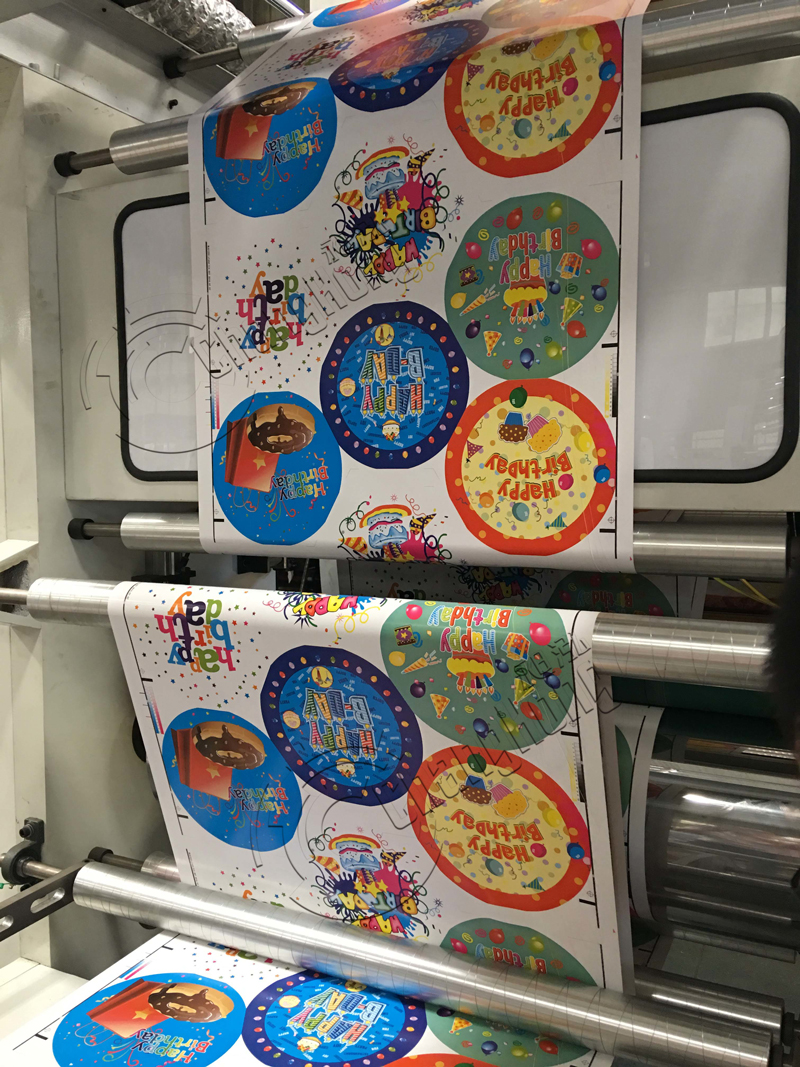

Machine Detailed Pictures

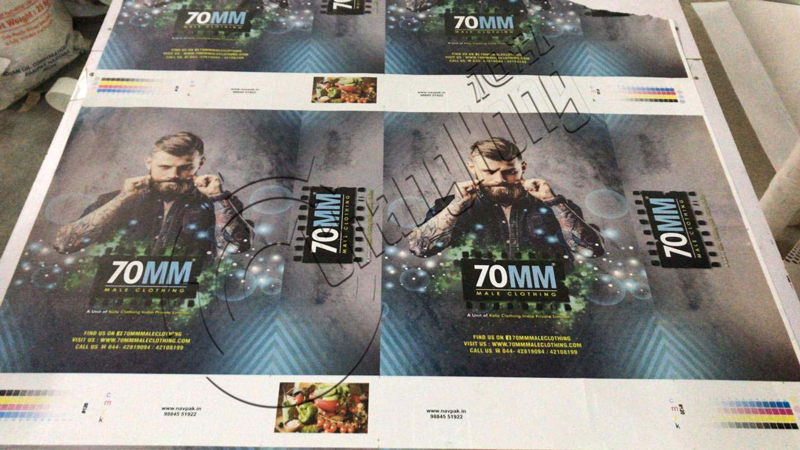

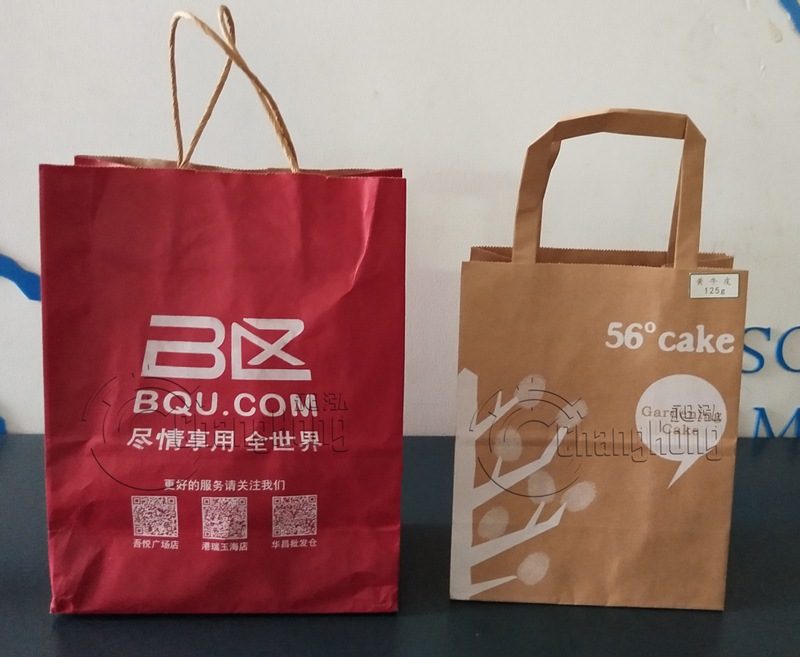

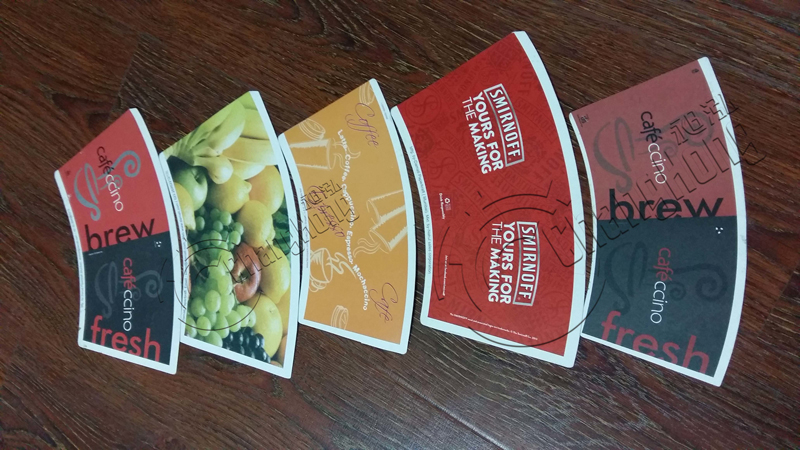

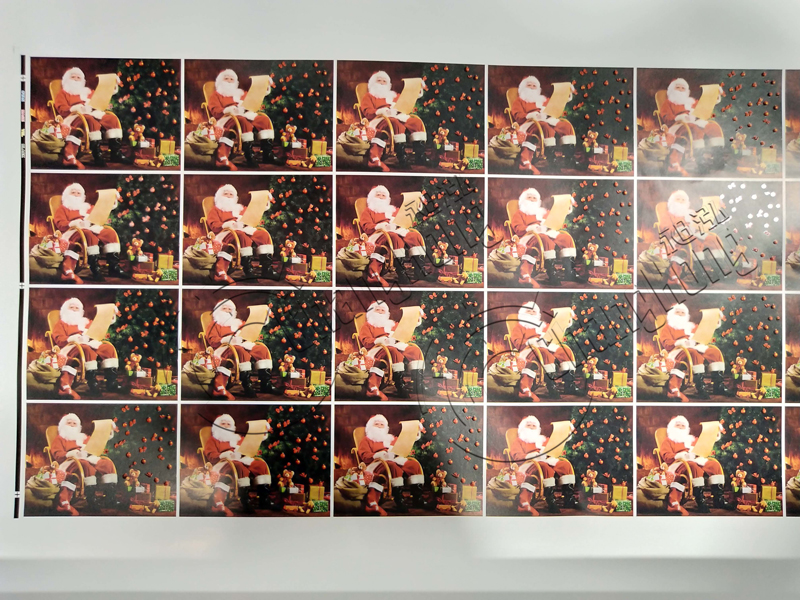

Printing Sample
Product detail pictures:
Related Product Guide:
We stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers for the management and zero defect, zero complaints as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price for Best High Quality Flexo Printing Machine 2 Color Suppliers – Economic Ci Printing Machine For Paper And Non Woven 6 Colors – Changhong Printing , The product will supply to all over the world, such as: Sydney, Dubai, Malaysia, Thus far, our item associated with printer dtg a4 may be shown in most foreign nations as well as urban centers, which are sought after simply by targeted traffic. We all highly imagine that now we have the full capacity to present you with contented merchandise. Desire to collect requests of your stuff and produce the long-term co-operation partnership. We very seriously promise:Csame top quality, better price; exact same selling price, higher quality.
