NON-STOP CI FEXOGRAPHIC PRINTING PRESS

NON-STOP CI FEXOGRAPHIC PRINTING PRESS

CHCI-Eseries

This CI flexographic printing press is equipped with a continuous non-stop double station system, which greatly improves production efficiency and material utilization.Its advanced central impression (CI) cylinder design ensures extremely high operational stability for the substrate, guaranteeing exceptional registration accuracy and color consistency. Even intricate continuous patterns can be reproduced flawlessly, making it an ideal industrial-grade solution for high-speed, high-quality mass production.

TECHNICAL SPECIFICATIONS

model

CHCI8-600E-S

CHCI8-800E-S

CHCI8-1000E-S

CHCI8-1200E-S

Max.Web Width

700mm

900mm

1100mm

1300mm

Max.Printing Width

600mm

800mm

1000mm

1200mm

Max.Machine Speed

350m/min

Max. Printing Speed

300m/min

Max.Unwind/Rewind Dia.

Φ800mm /Φ1000mm/Φ1200mm

Drive Type

Central drum with Gear drive
Photopolymer Plate To be specified

Ink

Water base ink olvent ink

Printing Length (repeat)

350mm-900mm

Range Of Substrates

LDPE, LLDPE, HDPE, BOPP, CPP, OPP, PET, Nylon,

Electrical Supply

Voltage 380V.50 HZ.3PH or to be specified



Machine Features

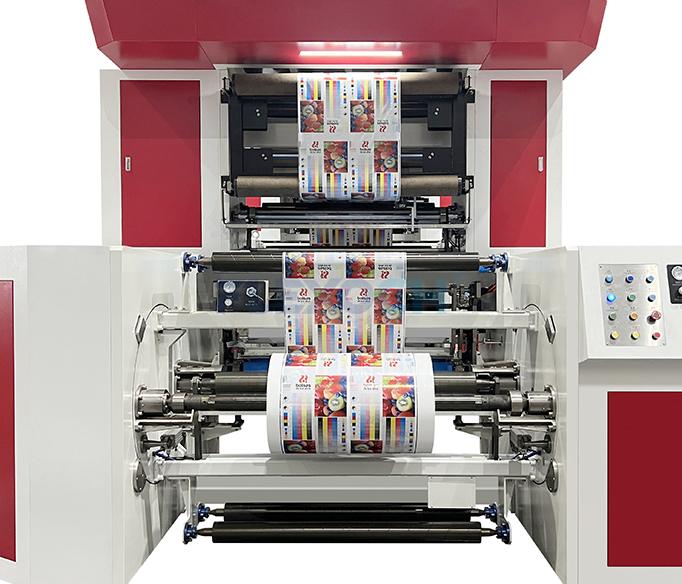

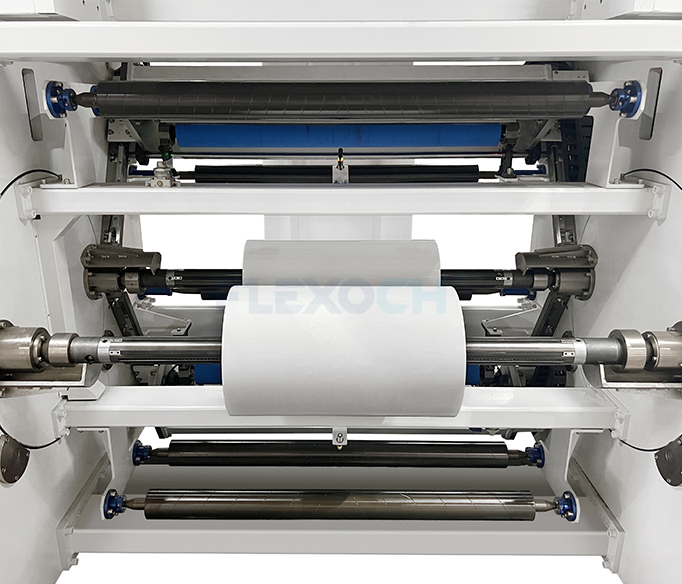

1. This ci flexographic printing press features a continuous, double station non-stop system, allowing the main printing unit to continue operating while changing printing materials or performing preparatory work. This completely eliminates the time wasted stopping for material changes associated with traditional equipment, significantly shortening work intervals and significantly improving overall production efficiency.

2. The double station system not only ensures continuous production but also achieves near-zero material waste during splicing. Precise pre-registration and automatic splicing eliminate significant material loss during each start-up and shutdown, directly reducing production costs .

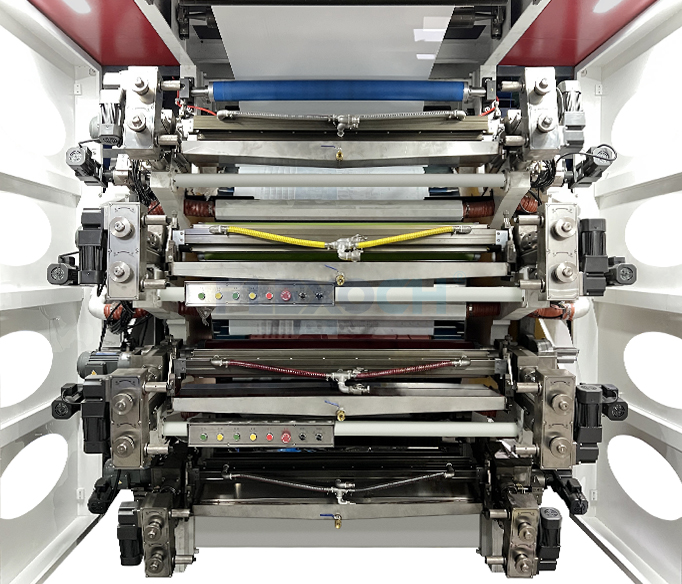

3. The core central impression (CI) cylinder design of this flexographic printing machine guarantees high-quality printing. All printing units are arranged around a massive, precision temperature-controlled central cylinder. The substrate closely adheres to the cylinder surface during printing, ensuring extremely high registration accuracy and unparalleled consistency throughout the production process.

4. Additionally, this ci flexo printing machine is optimized for the printing characteristics of plastic substrates. It effectively addresses issues like stretching and deformation of plastic films, ensuring exceptional registration accuracy and stable color reproduction even at high speeds.

  • High efficiencyHigh efficiency
  • Fully automaticFully automatic
  • Eco-friendlyEco-friendly
  • Wide range of materialsWide range of materials
  • Aluminum Foil
    Aluminum Foil
    Food Bag
    Plastic Bag
    Plastic Label
    Shrink Film

    Sample display

    Flexographic printing press have a wide range of application materials. In addition to printing various plastic films, they can also print paper, non-woven fabrics and other materials.
